Removal and Installation

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps In this procedure may contain installation details.
  1. Remove the bumper cover. Refer to BUMPERS .

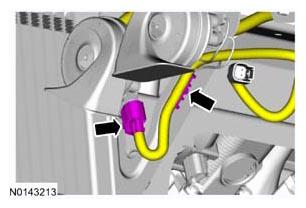

  2. Disconnect the horn electrical connector and wire retainer.
    G08643053

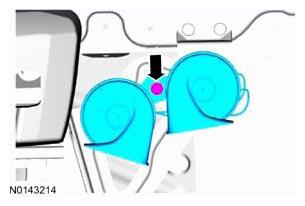

  3. Remove the bolt and the horns.
    • To install, tighten to 12 Nm (106 lb-in).
      G08643054

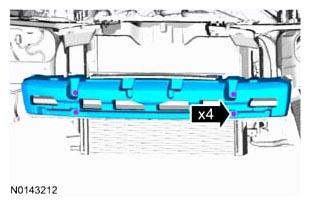

  4. Remove the 4 retainers and the front bumper isolator.
    G08643055
  5. NOTE: If metal or aluminum material is present in the oil cooler, mechanical concerns exist. Failure to correct these concerns may cause engine failure. To diagnose mechanical concerns, refer to ENGINE SYSTEM - GENERAL INFORMATION .

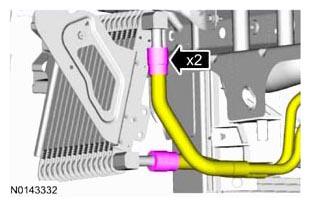

    Disconnect the 2 oil cooler hoses.

    G08643056

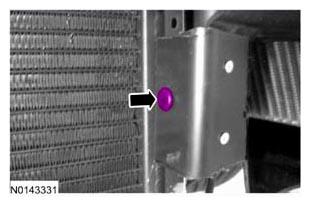

  6. Remove the pin type retainer.
    G08643057

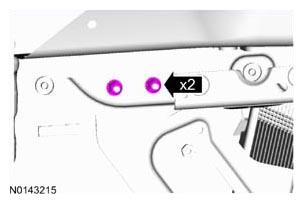

  7. Remove the 2 nuts for the oil cooler bracket.
    • To install, tighten to 7 Nm (62 lb-in).
      G08643058
  8. Remove the bolt and the oil cooler.
    • To install, tighten to 25 Nm (18 lb-ft).
      G08643059
  9. To install, reverse the removal procedure.
