Exhaust Manifold - RH: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Lifting Bracket, Engine 303-D087 (D93P-6001-A1) or equivalent |
|
| Support Bar, Engine 303-F070 |
|
| Support Bar, Engine 303-F072 |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Metal Surface Prep ZC-31-A |
- |

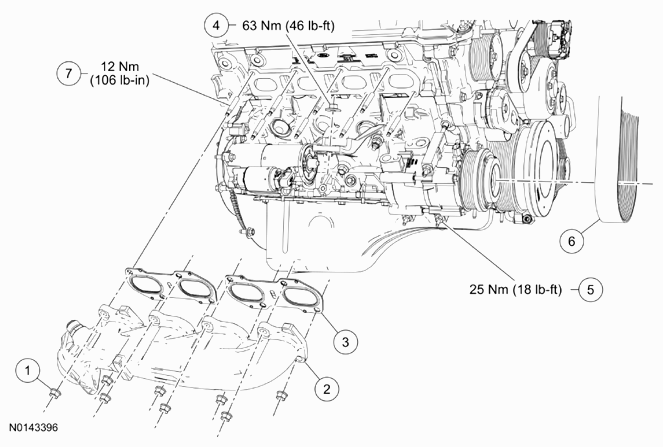

| Item | Part Number | Description |
|---|---|---|
| 1 | W701706 | RH exhaust manifold nut (8 required) |
| 2 | 9428 | RH exhaust manifold |
| 3 | 9Y431 | RH exhaust manifold gasket (2 required) |
| 4 | W712530 | RH engine support insulator nut |
| 5 | W707821 | A/C compressor stud bolt (3 required) |
| 6 | 8620 | Supercharger (SC) drive belt |
| 7 | W707747 | RH exhaust manifold stud (8 required) |
