LH Exhaust Manifold (View 1 of 2)

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

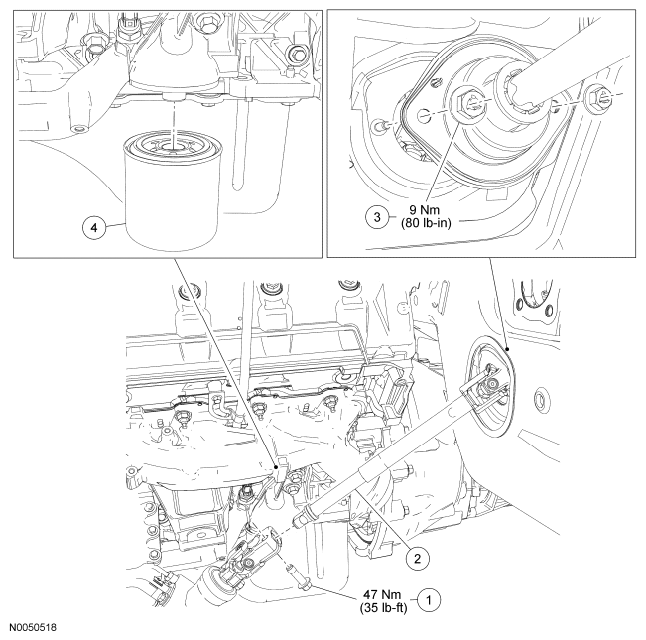

Fig 1: Intermediate Steering Shaft Bolt, Intermediate Steering Shaft, Dash Boot Nut And Engine Oil Filter With Torque Specifications
G06394721Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W702600 Intermediate steering shaft bolt
2 3C662 Intermediate steering shaft
3 W707137 Dash boot nut (2 required)
4 6714 Engine oil filter
