Engine Front Cover (View 4 of 4): Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

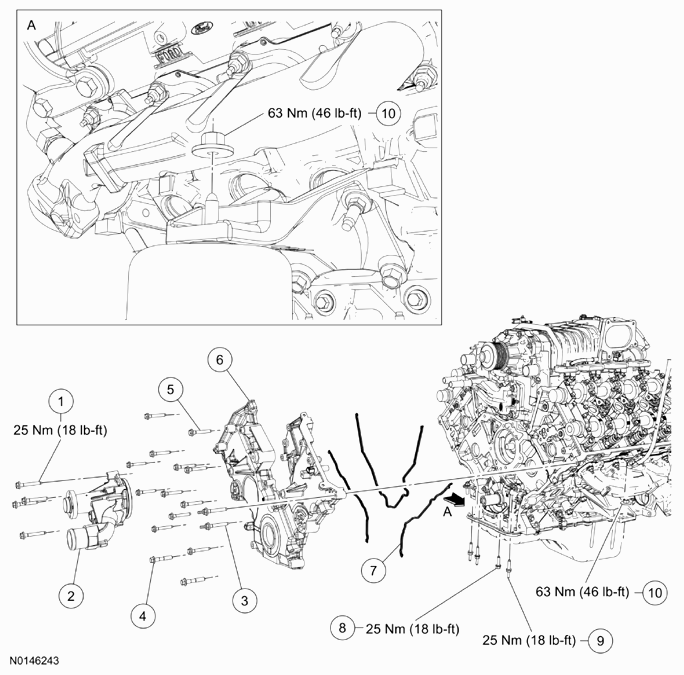

Fig 1: Exploded View Of Engine Front Cover Components With Torque Specifications
G08642924Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N806177 Coolant pump bolt (4 required)
2 8501 Coolant pump
3 N808586 Engine front cover stud bolt (2 required)
4 N606063 Engine front cover bolt (2 required)
5 N806177 Engine front cover bolt (12 required)
6 6C086 Engine front cover
7 6D081 Engine front cover gasket
8 W701605 Oil pan-to-engine front cover bolt
9 W701606 Oil pan-to-engine front cover stud bolt (3 required)
10 W712530 RH engine support insulator nut
11 W712530 LH engine support insulator nut
