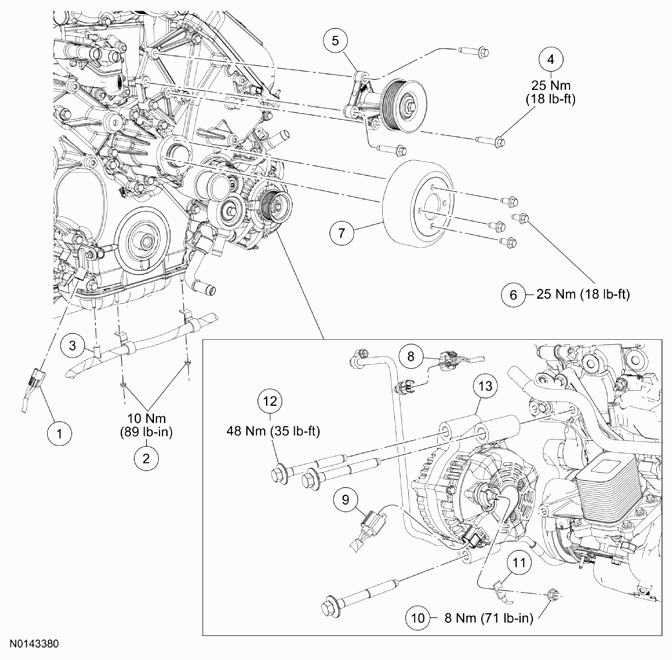

Engine Front Cover (View 2 of 4)
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Crankshaft Position (CKP) sensor electrical connector (part of 12B637) |
| 2 | W701852 | Wire harness retainer bracket nuts |
| 3 | - | Wire harness retainer (part of 12B637) |
| 4 | W500310 | Accessory drive idler pulley and bracket bolt (3 required) |
| 5 | 6A553 | Accessory drive idler pulley and bracket assembly |
| 6 | N806282 | Coolant pump pulley bolt (4 required) |
| 7 | 8A528 | Coolant pump pulley |
| 8 | - | A/C pressure transducer electrical connector (part of 12B637) |
| 9 | - | Generator electrical connector (part of 12B637) |
| 10 | W705790 | B+ wire terminal nut |
| 11 | - | B+ wire terminal (part of 14305) |
| 12 | N805424 | Generator bolt (3 required) |
| 13 | 10300 | Generator |
