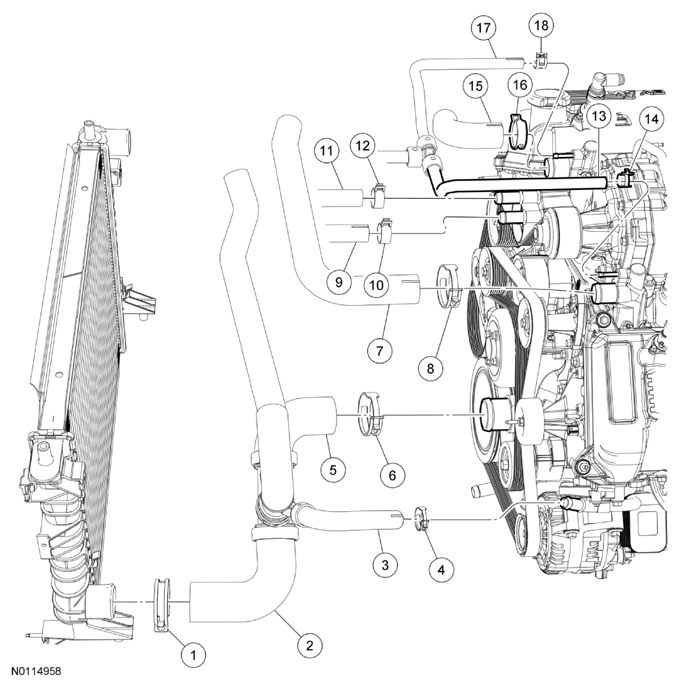

Engine Front Cover (View 1 of 4)
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 15161 | Lower radiator hose assembly-to-radiator clamp |
| 2 | 8B273 | Lower radiator hose assembly-to-radiator |
| 3 | 8B273 | Lower radiator hose assembly-to-coolant tube assembly |
| 4 | 15161 | Lower radiator hose assembly-to-coolant tube assembly clamp |
| 5 | 8B273 | Lower radiator hose assembly-to-coolant pump |
| 6 | 15161 | Lower radiator hose assembly-to-coolant pump clamp |
| 7 | 8A586 | Upper radiator hose |
| 8 | 15161 | Upper radiator hose clamp |
| 9 | 8D031 | Charge Air Cooler (CAC) coolant hose |
| 10 | W527362 | CAC coolant hose clamp |
| 11 | 8D030 | CAC coolant hose |
| 12 | W527362 | CAC coolant hose clamp |
| 13 | 8276 | Coolant vent hose |
| 14 | W527352 | Coolant vent hose clamp |
| 15 | 8A586 | Upper radiator hose |
| 16 | 15161 | Upper radiator hose clamp |
| 17 | 8276 | Coolant vent hose |
| 18 | W527352 | Coolant vent hose clamp |
