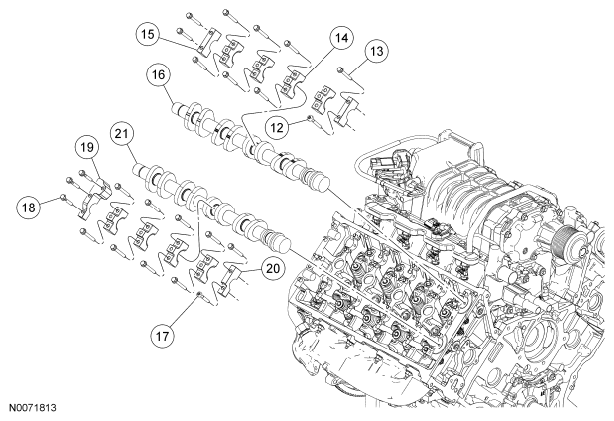

RH Camshaft (View 2 of 2): Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 12 | W710990 | Intake camshaft bearing cap bolt |
| 13 | N807352 | Intake/exhaust camshaft bearing cap bolt (22 required) |
| 14 | 6B277 | Intake/exhaust camshaft bearing cap (8 required) |
| 15 | 6B277 | Intake camshaft bearing cap (2 required) |
| 16 | 6A270 | RH intake camshaft |
| 17 | W710991 | Exhaust camshaft bearing cap bolt |
| 18 | W705438 | Exhaust camshaft bearing cap bolt (3 required) |
| 19 | 6B278 | Exhaust camshaft bearing cap |
| 20 | 6B278 | Exhaust camshaft bearing cap |
| 21 | 6A272 | RH exhaust camshaft |
