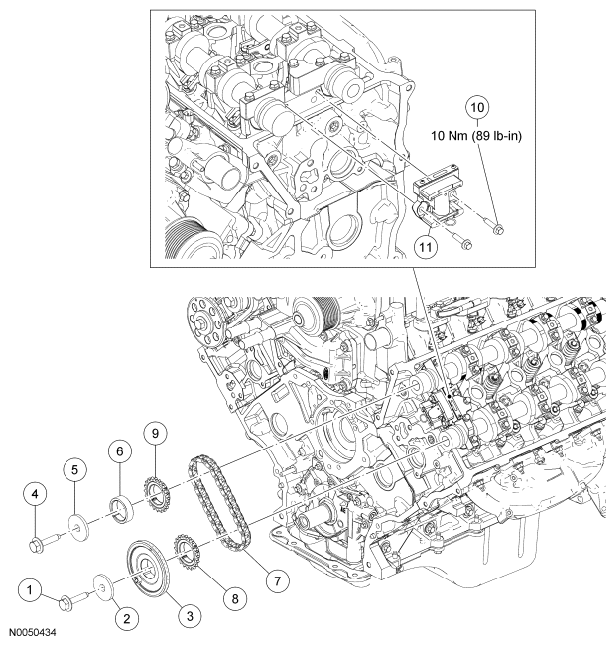

LH Camshaft (View 1 of 2)
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | N811085 | Camshaft drive sprocket bolt |
| 2 | N806164 | Camshaft drive sprocket washer |
| 3 | 6C253 | Camshaft drive sprocket |
| 4 | N811085 | Camshaft drive sprocket bolt |
| 5 | N806164 | Camshaft drive sprocket washer |
| 6 | 6265 | Camshaft drive sprocket spacer |
| 7 | 6268 | Secondary timing chain |
| 8 | 6256 | Exhaust camshaft drive sprocket |
| 9 | 6256 | Intake camshaft drive sprocket |
| 10 | W500215 | LH secondary timing chain tensioner bolt (2 required) |
| 11 | 6C271 | LH secondary timing chain tensioner |
