Section 180 (Engine Mechanical - 5.8L (4V)): Disassembly: Engine

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS

G06061933

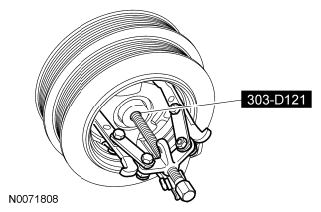

 3 Jaw Puller
303-D121 or equivalent
G06168017
 Compressor, Valve Spring
303-452 (T93P-6565-AR)
G06126594
 Installer, Connecting Rod
303-442 (T93P-6136-A)
G06061949
 Remover, Crankshaft Rear Oil Seal
303-519 (T95P-6701-EH)
G06126451
 Remover, Crankshaft Rear Oil Slinger
303-514 (T95P-6701-AH)
G07439435
 Remover, Oil Seal
303-409 (T92C-6700-CH)
G06064997
 Slide Hammer
100-001 (T50T-100-A)
G07958537
 Strap Wrench
303-D055 (D85L-6000-A) or equivalent
MATERIAL SPECIFICATIONS

Item Specification
Motorcraft® Metal Surface Prep
ZC-31-A		 -
Motorcraft® Silicone Gasket Remover
ZC-30		 -
NOTE: Remove the cylinder heads before removing the crankshaft. Failure to do so can result in engine damage.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE: The flywheel, crankshaft rear oil slinger, crankshaft rear seal and crankshaft rear seal retainer plate must be removed before mounting the engine on the engine stand.
NOTE: For additional information, refer to the exploded view under the ASSEMBLY  procedure.
  1. Remove the 8 flywheel bolts.
  2. NOTE: The flywheel is a press fit on the crankshaft pilot. Do not use screwdrivers or prybars to remove the flywheel or damage to the flywheel or engine may occur.

    Remove the flywheel.

    • Install 2 of the removed flywheel bolts in the 2 holes shown on the flywheel flange.
    • Tighten the 2 bolts evenly to push the flywheel off the crankshaft pilot.
      Fig 1: Locating Flywheel Bolts Holes
      G06394765Courtesy of FORD MOTOR CO.
  3. Remove the engine/transmission spacer plate.
    Fig 2: Locating Engine-To-Transmission Spacer Plate
    G06394814Courtesy of FORD MOTOR CO.
  4. Using the Slide Hammer and the Crankshaft Rear Oil Slinger Remover, remove the crankshaft rear oil slinger.
    Fig 3: Removing Crankshaft Rear Oil Seal Slinger Using Special Tools
    G06126453Courtesy of FORD MOTOR CO.
  5. Using the Slide Hammer and the Crankshaft Rear Oil Seal Remover, remove the crankshaft rear seal.
    Fig 4: Removing Crankshaft Rear Seal Using Special Tools
    G06126454Courtesy of FORD MOTOR CO.
  6. Remove the 8 bolts and the rear seal retainer plate.
    • NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

      Clean the mating surfaces with silicone gasket remover and metal surface prep. Follow the directions on the packaging.

    • Inspect the mating surfaces.
      Fig 5: Locating Bolts And Crankshaft Rear Seal Retainer Plate
      G06126605Courtesy of FORD MOTOR CO.
  7. Mount the engine on a suitable work stand.
    Fig 6: Locating Engine Work Stand Mounting Arms
    G07988953Courtesy of FORD MOTOR CO.

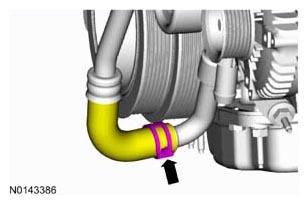

  8. If equipped, disconnect the coolant hose from the oil cooler.
    G08643215

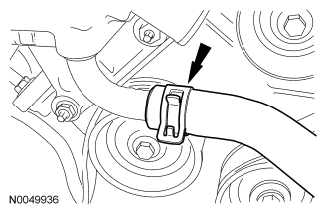

  9. If equipped, disconnect the coolant hose from the thermostat housing.
    Fig 7: Locating Thermostat Housing Coolant Hose
    G06394816Courtesy of FORD MOTOR CO.

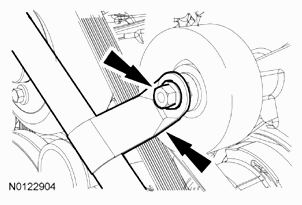

  10. If equipped, remove the coolant tube bracket nut and the coolant tube.
    Fig 8: Locating Coolant Tube Bracket And Nut
    G08643363Courtesy of FORD MOTOR CO.

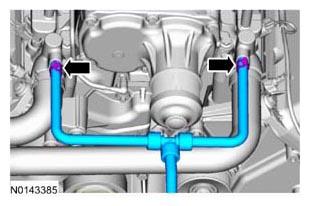

  11. Remove the engine vent hose from the intake manifold.
    G08643218

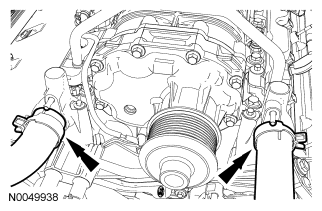

  12. Disconnect the 2 upper radiator hoses from the intake manifold.
    Fig 9: Locating Upper Radiator Hoses Clamps
    G06394819Courtesy of FORD MOTOR CO.

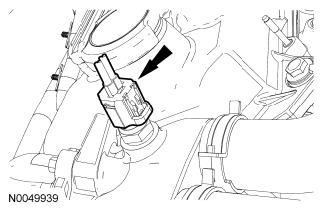

  13. Disconnect the Engine Coolant Temperature (ECT) sensor electrical connector.
    Fig 10: Locating Engine Coolant Temperature (ECT) Sensor Electrical Connector
    G06394820Courtesy of FORD MOTOR CO.

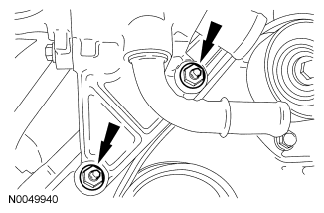

  14. Remove the 2 nuts and the thermostat housing assembly.
    Fig 11: Locating Thermostat Housing Assembly Nuts
    G06394821Courtesy of FORD MOTOR CO.

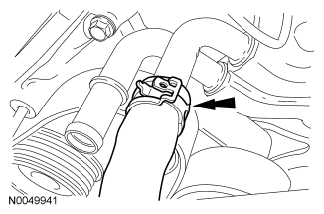

  15. Disconnect the coolant hose from the Charge Air Cooler (CAC).
    Fig 12: Locating Coolant Hose Clamp
    G06394822Courtesy of FORD MOTOR CO.

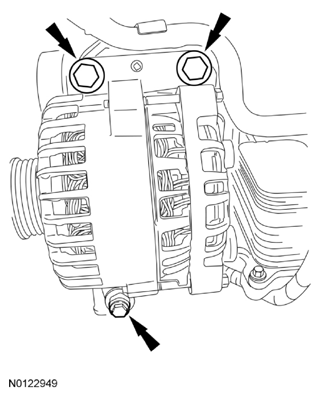

  16. Remove the 3 bolts and the generator.
    Fig 13: Locating Alternator Bolts
    G07988965Courtesy of FORD MOTOR CO.

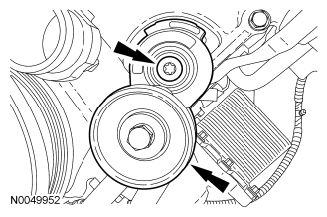

  17. Remove the bolt and the accessory drive belt tensioner.
    Fig 14: Locating Accessory Drive Belt Tensioner And Bolt
    G06394832Courtesy of FORD MOTOR CO.

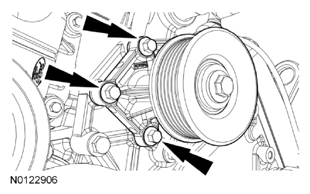

  18. Remove the 3 bolts and the accessory drive belt idler pulley.
    Fig 15: Locating Accessory Drive Belt Idler Pulley Bolts
    G07988969Courtesy of FORD MOTOR CO.

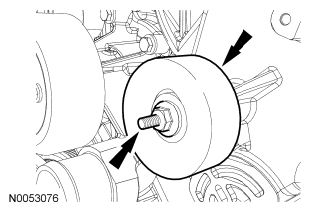

  19. Remove the stud bolt and the accessory drive belt idler pulley (smooth).
    Fig 16: Locating Stud Bolt And Accessory Drive Belt Idler Pulley (Smooth)
    G06394833Courtesy of FORD MOTOR CO.

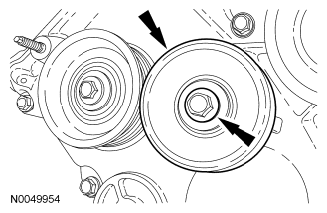

  20. Remove the bolt and the accessory drive belt idler pulley (grooved).
    Fig 17: Locating Bolt And Accessory Drive Belt Idler Pulley (Grooved)
    G06394834Courtesy of FORD MOTOR CO.

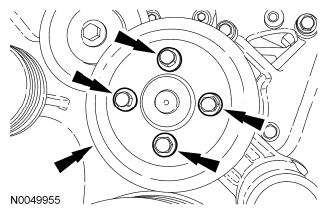

  21. Using the Strap Wrench, remove the 4 bolts and the coolant pump pulley.
    Fig 18: Locating Coolant Pump Pulley And Bolts
    G06382398Courtesy of FORD MOTOR CO.

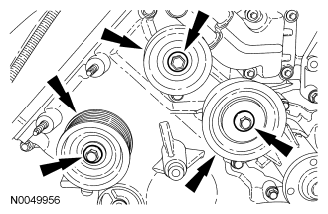

  22. Remove the 3 bolts and the 3 SC drive belt idler pulleys.
    Fig 19: Locating SC Drive Belt Idler Pulleys And Bolts
    G06394836Courtesy of FORD MOTOR CO.

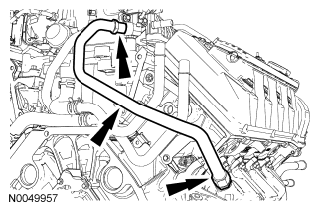

  23. Disconnect the 2 EGR tube fittings.
    • Remove the EGR tube.
      Fig 20: Locating EGR Tube Fittings And EGR Tube
      G06394837Courtesy of FORD MOTOR CO.

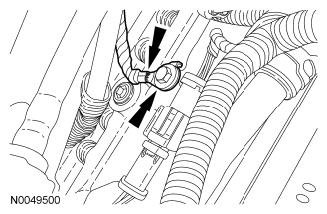

  24. Remove the bolt and the ground wire from the rear of the LH cylinder head.
    Fig 21: Locating Rear Of LH Cylinder Head Ground Wire And Bolt
    G06394949Courtesy of FORD MOTOR CO.

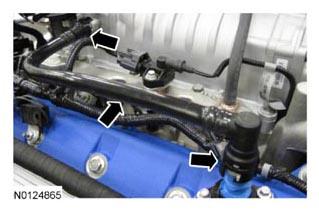

  25. Disconnect and remove the crankcase ventilation tube.
    G07988975

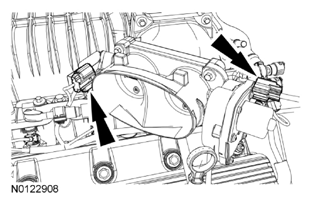

  26. Disconnect the Throttle Position (TP) sensor and Electronic Throttle Control (ETC) electrical connectors.
    Fig 22: Locating Throttle Position Sensor And Electronic Throttle Control Electrical Connectors
    G07988976Courtesy of FORD MOTOR CO.

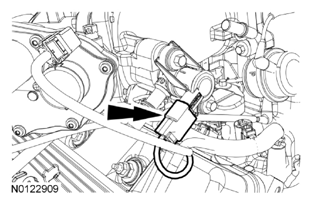

  27. Disconnect the Evaporative Emission (EVAP) canister purge valve electrical connector.
    Fig 23: Locating Evaporative Emission Canister Purge Valve Electrical Connector
    G07988977Courtesy of FORD MOTOR CO.

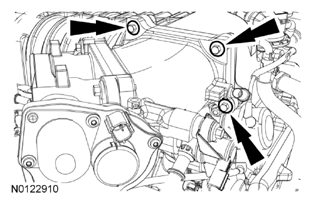

  28. Remove the 4 bolts and the Throttle Body (TB) and spacer assembly.
    • Discard the gasket.
      Fig 24: Locating Throttle Body And Spacer Assembly Bolts
      G07988978Courtesy of FORD MOTOR CO.
  29. Disconnect the Cylinder Head Temperature (CHT) sensor electrical connector.
    Fig 25: Locating Cylinder Head Temperature Sensor Electrical Connector
    G06394842Courtesy of FORD MOTOR CO.
  30. Detach the 2 wiring harness pin-type retainers (1 shown in illustration) from the coolant tube assembly bracket.
    Fig 26: Locating Wiring Harness Pin-Type Retainers
    G06394843Courtesy of FORD MOTOR CO.
  31. Disconnect the bubbler hose from the SC.
    Fig 27: Locating Bubbler Hose Clamp
    G06394845Courtesy of FORD MOTOR CO.
  32. Disconnect the Knock Sensor (KS) electrical connector.
    Fig 28: Locating Knock Sensor (KS) Electrical Connector And Pin-Type Retainer
    G06392565Courtesy of FORD MOTOR CO.
  33. Remove the 2 bolts and the wiring harness retaining bracket.
    Fig 29: Locating Wiring Harness Retaining Bracket And Bolts
    G06394846Courtesy of FORD MOTOR CO.

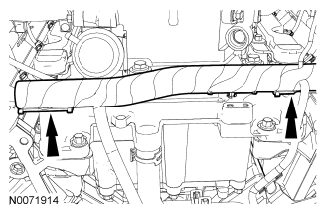

  34. Detach the 2 wiring harness pin-type retainers.
    Fig 30: Locating Wiring Harness Pin-Type Retainers
    G06394847Courtesy of FORD MOTOR CO.

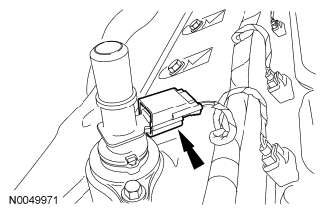

  35. Disconnect the PCV valve electrical connector.
    Fig 31: Locating PCV Valve Electrical Connector
    G06394848Courtesy of FORD MOTOR CO.

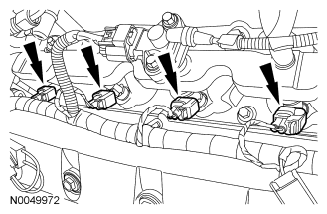

  36. Disconnect the 4 RH fuel injector electrical connectors.
    Fig 32: Locating RH Fuel Injector Electrical Connectors
    G06394849Courtesy of FORD MOTOR CO.

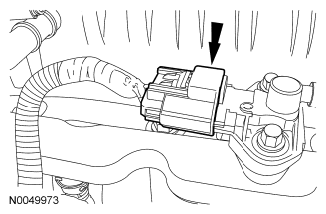

  37. Disconnect the fuel rail pressure and temperature sensor electrical connector.
    Fig 33: Locating Fuel Rail Pressure And Temperature Sensor Electrical Connector
    G06394850Courtesy of FORD MOTOR CO.

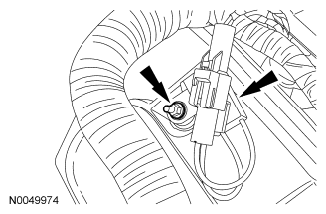

  38. Remove the nut and position aside the RH radio interference capacitor.
    Fig 34: Locating RH Radio Interference Capacitor And Nut
    G06394851Courtesy of FORD MOTOR CO.

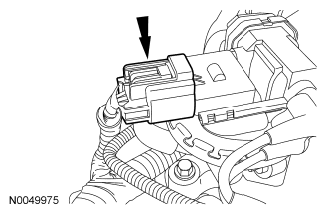

  39. Disconnect the EGR valve electrical connector.
    Fig 35: Locating EGR Valve Electrical Connector
    G06394852Courtesy of FORD MOTOR CO.

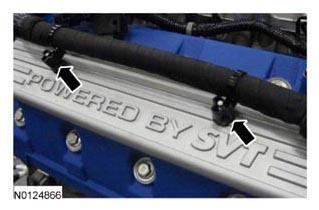

  40. Detach the 2 wiring harness retainers from the RH coil-on-plug cover stud bolts.
    G07988990

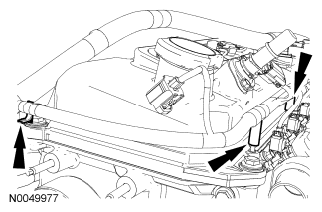

  41. Detach the wiring harness retainers from the RH valve cover stud bolts.
    Fig 36: Locating Wiring Harness Retainers On RH Valve Cover Stud Bolts
    G06394854Courtesy of FORD MOTOR CO.

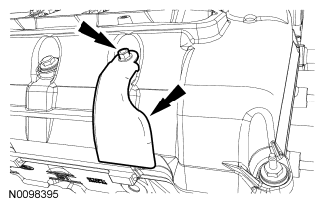

  42. Remove the nut and the A/C tube support bracket.
    Fig 37: Locating A/C Tube Support Bracket And Nut
    G06394855Courtesy of FORD MOTOR CO.

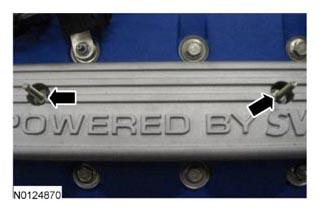

  43. Remove the 2 stud bolts and the RH coil-on-plug cover.
    G07988993

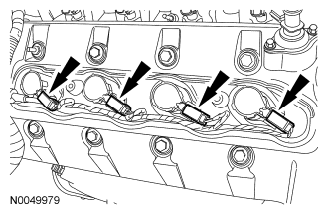

  44. Disconnect the 4 RH coil-on-plug electrical connectors.
    • Remove the 4 RH coil-on-plugs.
      Fig 38: Locating RH Coil-On-Plug Electrical Connectors
      G06394857Courtesy of FORD MOTOR CO.

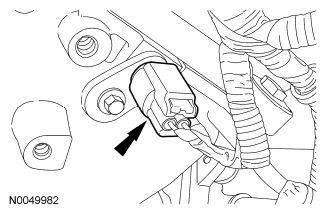

  45. Disconnect the Camshaft Position (CMP) sensor electrical connector.
    Fig 39: Locating Camshaft Position (CMP) Sensor Electrical Connector
    G06394859Courtesy of FORD MOTOR CO.
  46. Disconnect the Intake Air Temperature 2 (IAT2) sensor electrical connector.
    Fig 40: Locating Intake Air Temperature 2 (IAT2) Sensor Electrical Connector
    G06394860Courtesy of FORD MOTOR CO.

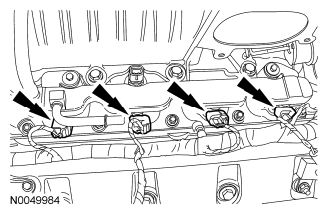

  47. Disconnect the 4 LH fuel injector electrical connectors.
    Fig 41: Locating LH Fuel Injector Electrical Connectors
    G06394861Courtesy of FORD MOTOR CO.
  48. Remove the nut and position aside the LH radio interference capacitor.
    Fig 42: Locating LH Radio Interference Capacitor And Nut
    G06394862Courtesy of FORD MOTOR CO.

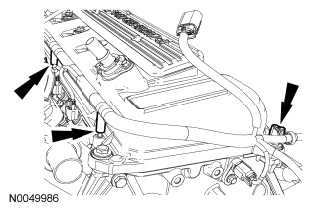

  49. Detach the wiring harness retainers from the LH valve cover stud bolts.
    Fig 43: Locating Wiring Harness Retainers On LH Valve Cover Stud Bolts
    G06394863Courtesy of FORD MOTOR CO.

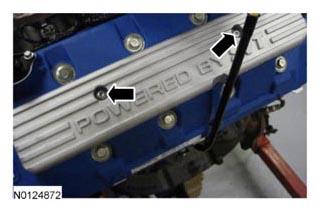

  50. Remove the 2 bolts and the LH coil-on-plug cover.
    G07989001

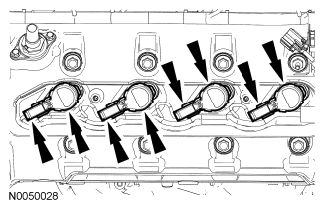

  51. Disconnect the 4 LH coil-on-plug electrical connectors.
    • Remove the 4 LH coil-on-plugs.
      Fig 44: Locating LH Coil-On-Plug Electrical Connectors
      G06394865Courtesy of FORD MOTOR CO.
  52. Remove the wiring harness assembly from the engine.
  53. Disconnect the intake manifold-to-coolant tube assembly hose.
    Fig 45: Locating Intake Manifold-To-Coolant Tube Assembly Hose Clamp
    G06394866Courtesy of FORD MOTOR CO.
  54. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

    Remove the 14 bolts and the intake manifold assembly.

    • Remove and discard the 2 intake manifold gaskets.
      G08643258

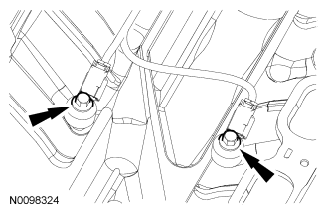

  55. Remove the 2 bolts and the KS.
    Fig 46: Locating Knock Sensor (KS) Bolts
    G06395020Courtesy of FORD MOTOR CO.

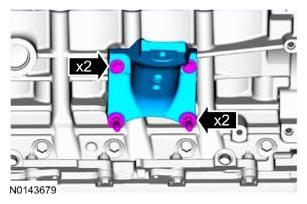

  56. Remove the 2 stud bolts, 2 bolts and the RH engine support insulator bracket.
    G08643408

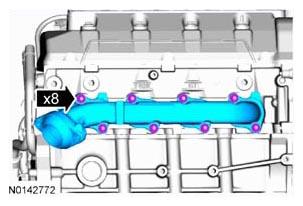

  57. Remove 8 nuts and the RH exhaust manifold.
    • Discard the nuts and gaskets.
      G08643292
  58. Clean and inspect the RH exhaust manifold. Refer to ENGINE SYSTEM - GENERAL INFORMATION .

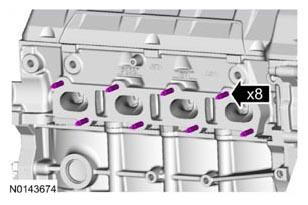

  59. Remove and discard the 8 RH exhaust manifold studs.
    Fig 47: Locating RH Exhaust Manifold Studs
    G08643293Courtesy of FORD MOTOR CO.

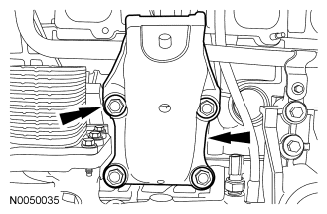

  60. Remove the 4 bolts and the LH engine support insulator bracket.
    Fig 48: Locating LH Engine Mount Bracket And Bolts
    G06395023Courtesy of FORD MOTOR CO.

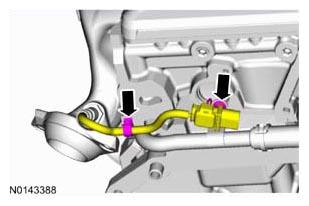

  61. Disconnect the 2 LH Heated Oxygen Sensor (HO2S) wire retainers.
    G08643289

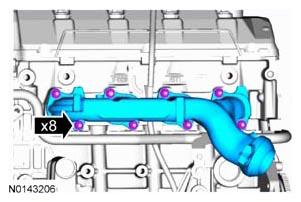

  62. Remove 8 nuts and the LH exhaust manifold.
    • Discard the nuts and gaskets.
      G08643290
  63. Clean and inspect the LH exhaust manifold. Refer to ENGINE SYSTEM - GENERAL INFORMATION .

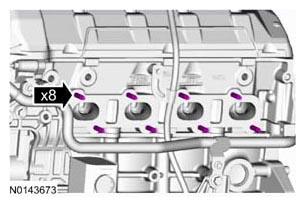

  64. Remove and discard the 8 LH exhaust manifold studs.
    Fig 49: Locating LH Exhaust Manifold Studs
    G08643291Courtesy of FORD MOTOR CO.

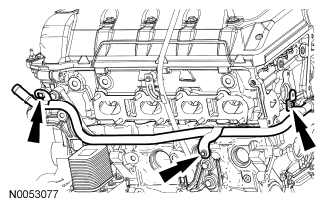

  65. Remove the 3 coolant tube assembly bolts.
    Fig 50: Locating Coolant Tube Assembly Bolts
    G06395025Courtesy of FORD MOTOR CO.

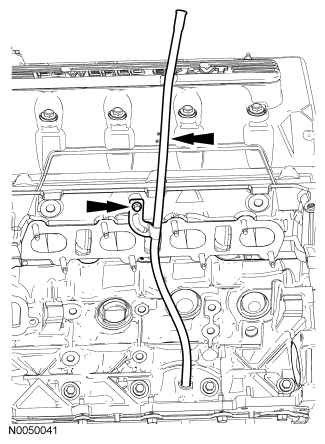

  66. Remove the oil level indicator, the bolt and the oil level indicator tube.
    • Remove and discard the oil level indicator tube O-ring seal.
      Fig 51: Locating Oil Level Indicator Tube And Bolts
      G06395026Courtesy of FORD MOTOR CO.

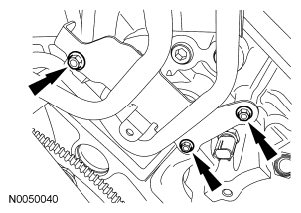

  67. Remove the 3 bolts and the coolant tube assembly.
    Fig 52: Locating Coolant Tube Assembly Bolts
    G06394899Courtesy of FORD MOTOR CO.

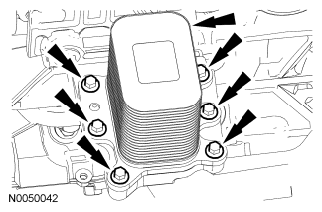

  68. NOTE: A new oil cooler and oil cooler thermostat (if equipped) must be installed or severe damage to the engine can occur.
    NOTE: Oil cooler shown in illustration, oil cooler thermostat similar.

    Remove the 6 bolts and the oil cooler or oil cooler thermostat.

    • Discard the oil cooler and the gaskets.
      Fig 53: Locating Oil Cooler Bolts
      G06394869Courtesy of FORD MOTOR CO.

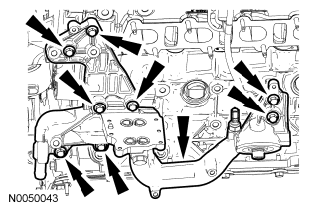

  69. Remove the 8 bolts and the oil filter adapter.
    • Discard the oil filter adapter gasket.
      Fig 54: Locating Oil Filter Adapter Bolts
      G06394870Courtesy of FORD MOTOR CO.
  70. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

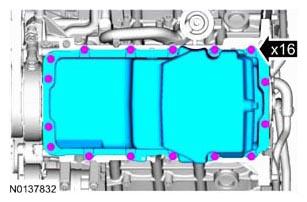

    Remove the 13 bolts, 3 stud bolts and the oil pan.

    G08643121

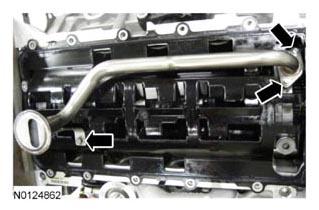

  71. Remove the 3 bolts and the oil pump screen and pickup tube.
    • Discard the O-ring seal.
      Fig 55: Locating Oil Pump Screen, Pickup Tube And Bolts
      G07989154Courtesy of FORD MOTOR CO.

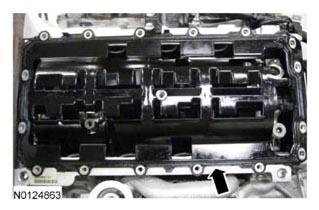

  72. Remove and discard the oil pan baffle and gasket.
    • Clean the mating surfaces with silicone gasket remover and metal surface prep. Follow the directions on the packaging.
    • Inspect the mating surfaces.
      Fig 56: Locating Oil Pan Baffle And Gasket
      G07989155Courtesy of FORD MOTOR CO.

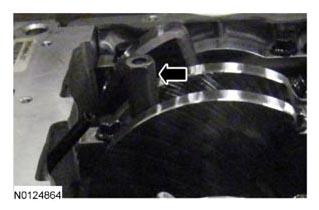

  73. Remove the oil pump screen and pickup tube spacer.
    Fig 57: Locating Pickup Tube Spacer
    G07989156Courtesy of FORD MOTOR CO.
  74. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Remove the bolts, stud bolts and RH valve cover.

    • Remove and discard the gaskets.
    • Clean the mating surfaces with silicone gasket remover and metal surface prep. Follow the directions on the packaging.
    • Inspect the mating surfaces.

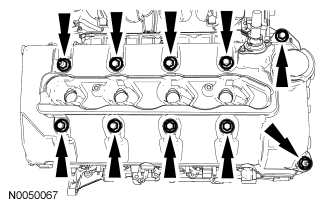

      Fig 58: Locating RH Valve Cover Bolts
      G06395034Courtesy of FORD MOTOR CO.
  75. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Remove the bolts, stud bolts and LH valve cover.

    • Remove and discard the gaskets.
    • Clean the mating surfaces with silicone gasket remover and metal surface prep. Follow the directions on the packaging.
    • Inspect the mating surfaces.

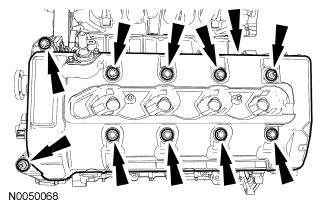

      Fig 59: Locating LH Valve Cover Bolts
      G06394874Courtesy of FORD MOTOR CO.
  76. Remove the bolt and the Crankshaft Position (CKP) sensor.

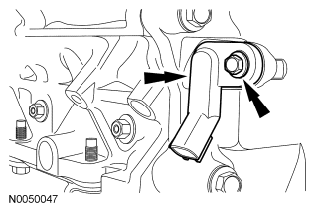

    Fig 60: Locating Crankshaft Position (CKP) Sensor And Bolt
    G06394875Courtesy of FORD MOTOR CO.
  77. Remove the bolt and the CMP sensor.
    Fig 61: Locating CMP Sensor And Bolt
    G06394876Courtesy of FORD MOTOR CO.

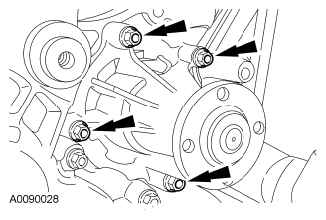

  78. Remove the 4 bolts and the coolant pump.
    Fig 62: Locating Coolant Pump Bolts
    G06394877Courtesy of FORD MOTOR CO.

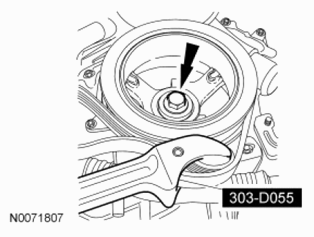

  79. Using the Strap Wrench, remove the crankshaft pulley bolt and the washer.
    • Discard the bolt.
      Fig 63: Removing/Installing Crankshaft Pulley Bolt And Washer Using Strap Wrench
      G07408870Courtesy of FORD MOTOR CO.
  80. Using the 3 Jaw Puller, remove the crankshaft pulley.
    Fig 64: Removing Crankshaft Pulley Using Jaw Puller
    G06394606Courtesy of FORD MOTOR CO.
  81. NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.

    Using the Oil Seal Remover, remove the crankshaft front oil seal.

    Fig 65: Removing Crankshaft Front Oil Seal Using Oil Seal Remover
    G07408874Courtesy of FORD MOTOR CO.
  82. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Remove the 16 bolts and the engine front cover.

    • Remove and discard the engine front cover gaskets.
    • Clean the mating surfaces with silicone gasket remover and metal surface prep. Follow the directions on the packaging.
    • Inspect the mating surfaces.
      G08642937
  83. NOTE: Only use hand tools when removing or installing the spark plugs, or damage may occur to the cylinder head or spark plugs.
    NOTE: Use compressed air to remove any foreign material in the spark plug well before removing the spark plugs.
    NOTE: RH shown in illustration, LH similar.

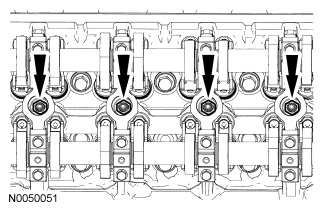

    Remove the 8 spark plugs.

    Fig 66: Locating Spark Plugs
    G06394883Courtesy of FORD MOTOR CO.
  84. NOTE: If the components are to be reinstalled, they must be installed in their original positions. Mark the components for installation into their original locations. Failure to follow these instructions may result in engine damage.

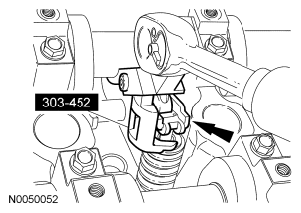

    Using the Valve Spring Compressor, compress the valve spring and remove the roller follower.

    Fig 67: Compressing Valve Spring Using Valve Spring Compressor
    G06394884Courtesy of FORD MOTOR CO.
  85. Repeat the previous step to remove each of the roller followers. Inspect the roller followers. Refer to ENGINE SYSTEM - GENERAL INFORMATION .
  86. NOTE: If the components are to be reinstalled, they must be installed in their original positions. Mark the components for installation into their original locations. Failure to follow these instructions may result in engine damage.

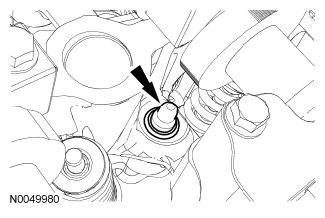

    Remove the hydraulic lash adjusters.

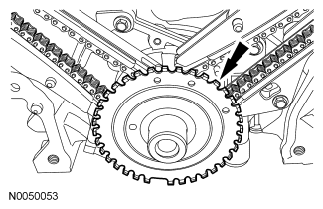

  87. Remove the crankshaft sensor ring.
    Fig 69: Locating Crankshaft Sensor Ring
    G06394638Courtesy of FORD MOTOR CO.

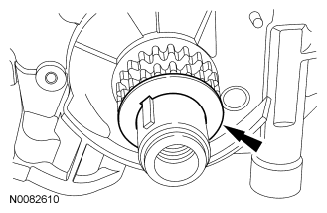

  88. Remove the crankshaft washer.
    Fig 70: Locating Crankshaft Washer
    G06394639Courtesy of FORD MOTOR CO.

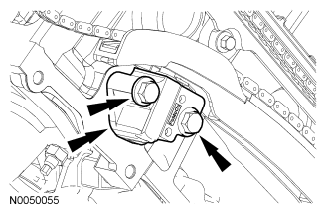

  89. Remove the 2 bolts and the RH primary timing chain tensioner.
    Fig 71: Locating RH Primary Timing Chain Tensioner And Bolts
    G06394640Courtesy of FORD MOTOR CO.

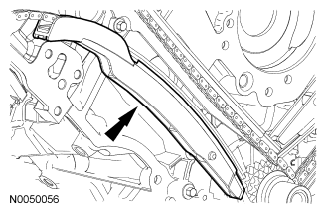

  90. Remove the RH primary timing chain tensioner arm.
    Fig 72: Locating RH Primary Timing Chain Tensioner Arm
    G06394641Courtesy of FORD MOTOR CO.
  91. Remove the RH primary timing chain.

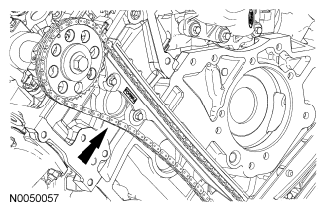

    Fig 73: Locating RH Primary Timing Chain
    G06394642Courtesy of FORD MOTOR CO.

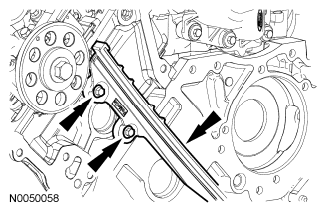

  92. Remove the 2 bolts and the RH primary timing chain guide.
    Fig 74: Locating RH Primary Timing Chain Guide And Bolts
    G06394643Courtesy of FORD MOTOR CO.

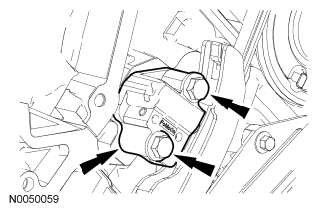

  93. Remove the 2 bolts and the LH primary timing chain tensioner.
    Fig 75: Locating LH Primary Timing Chain Tensioner And Bolts
    G06394644Courtesy of FORD MOTOR CO.
  94. Remove the LH primary timing chain tensioner arm.

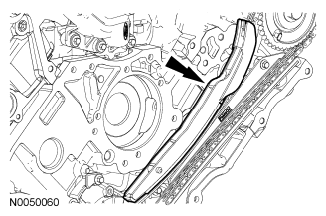

    Fig 76: Locating LH Primary Timing Chain Tensioner Arm
    G06394645Courtesy of FORD MOTOR CO.

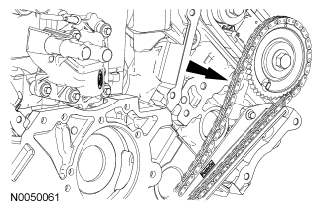

  95. Remove the LH primary timing chain.
    Fig 77: Locating LH Primary Timing Chain
    G06394646Courtesy of FORD MOTOR CO.

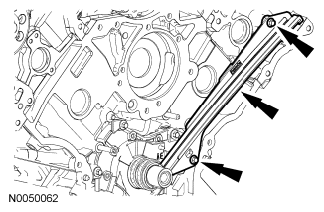

  96. Remove the 2 bolts and the LH primary timing chain guide.
    Fig 78: Locating LH Primary Timing Chain Guide And Bolts
    G06394647Courtesy of FORD MOTOR CO.

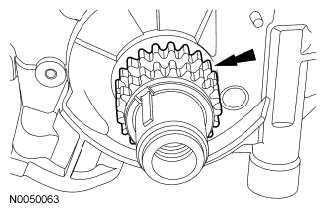

  97. Remove the crankshaft sprocket.
    Fig 79: Locating Crankshaft Sprocket
    G06394648Courtesy of FORD MOTOR CO.

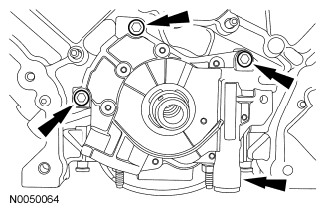

  98. Remove the 3 bolts and the oil pump.
    Fig 80: Locating Oil Pump Bolts
    G06394760Courtesy of FORD MOTOR CO.
  99. NOTE: The cylinder head must be cool before removing it from the engine. Cylinder head warpage can result if a warm or hot cylinder head is removed.
    NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine.
    NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are a tighten-to-yield design and cannot be reused.
    NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.
    NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface.
    NOTE: LH shown in illustration, RH similar.

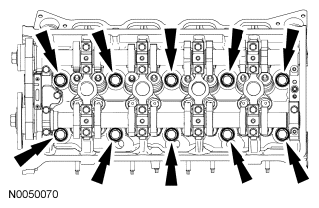

    Remove the bolts, the RH cylinder head and the LH cylinder head.

    • Discard the bolts.
    • Remove and discard the cylinder head gaskets.
      Fig 81: Locating Cylinder Head Bolts
      G06394900Courtesy of FORD MOTOR CO.
  100. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.
    NOTE: Observe all warnings or cautions and follow all application directions contained on the packaging of the silicone gasket remover and the metal surface prep.
    NOTE: If there is no residual gasket material present, metal surface prep can be used to clean and prepare the surfaces.

    Clean the cylinder head-to-cylinder block mating surfaces of both the cylinder head and the cylinder block in the following sequence.

    1. Remove any large deposits of silicone or gasket material with a plastic scraper.
    2. Apply silicone gasket remover, following package directions and allow to set for several minutes.
    3. Remove the silicone gasket remover with a plastic scraper. A second application of silicone gasket remover may be required if residual traces of silicone or gasket material remain.
    4. Apply metal surface prep, following package directions, to remove any remaining traces of oil or coolant and to prepare the surfaces to bond with the new gasket. Do not attempt to make the metal shiny. Some staining of the metal surfaces is normal.
  101. NOTE: Make sure all cylinder head surfaces are clear of any gasket material, RTV, oil and coolant. The cylinder head surface must be clean and dry before running a flatness check.
    NOTE: Use a straightedge that is calibrated by the manufacturer to be flat within 0.005 mm (0.0002 in) per running foot length. For example, if the straightedge is 61 cm (24 in) long, the machine edge must be flat within 0.010 mm (0.0004 in) from end to end.
    NOTE: LH shown in illustration, RH similar.

    Support the cylinder heads on a bench with the head gasket side up. Check the cylinder head distortion and the cylinder block distortion, paying particular attention to the oil pressure feed area. Refer to ENGINE SYSTEM - GENERAL INFORMATION .

    Fig 82: Identifying Oil Pressure Feed Area
    G06126589Courtesy of FORD MOTOR CO.
  102. Before removing the pistons, inspect the top of the cylinder bores. If necessary, remove the ridge or carbon deposits from each cylinder using an abrasive pad or equivalent, following manufacturer's instructions.
  103. NOTE: Verify that the connecting rods and rod caps have orientation numbers cast into them. If not, number the connecting rods and rod caps for correct orientation.

    Remove the bolts and the connecting rod caps for pistons No. 1 and No. 6.

    • Carefully tap the connecting rod bolts out of the connecting rod caps. Avoid damaging the rod caps.
      Fig 83: Locating Connecting Rod Caps Bolts
      G08643450Courtesy of FORD MOTOR CO.
  104. NOTE: Do not scratch the cylinder walls or crankshaft journals with the connecting rod.

    Using the Connecting Rod Installer, push pistons 1 and 6 through the top of the cylinder block.

    Fig 84: Pushing Piston Through Top Of Cylinder Block
    G06126665Courtesy of FORD MOTOR CO.
  105. To remove pistons 2, 3, 4, 5, 7 and 8, turn the crankshaft 90 degrees and repeat the previous steps.
  106. NOTE: Remove the cylinder heads before removing the crankshaft. Failure to do so can result in engine damage.

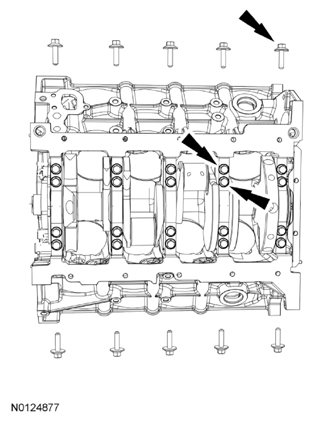

    Remove and discard the crankshaft main bearing cap bolts.

    Fig 85: Locating Crankshaft Main Bearing Cap Bolts
    G07989185Courtesy of FORD MOTOR CO.
  107. Remove the main bearing caps, the lower crankshaft main bearings and the lower thrust washer.
    Fig 86: Locating Main Bearing Caps, Lower Crankshaft Main Bearings And Lower Thrust Washer
    G07989186Courtesy of FORD MOTOR CO.
  108. Remove the crankshaft, the upper crankshaft main bearings and the upper thrust washers from the cylinder block.
    Fig 87: Locating Crankshaft, Upper Crankshaft Main Bearings And Upper Thrust Washers
    G06395064Courtesy of FORD MOTOR CO.
  109. Remove the 8 oil squirters.

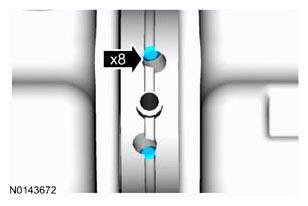

    Fig 88: Locating Oil Squirters
    G08643455Courtesy of FORD MOTOR CO.
scientia non olet · About LEMON Manuals
