Intake Manifold Assembly (View 3 of 3): Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

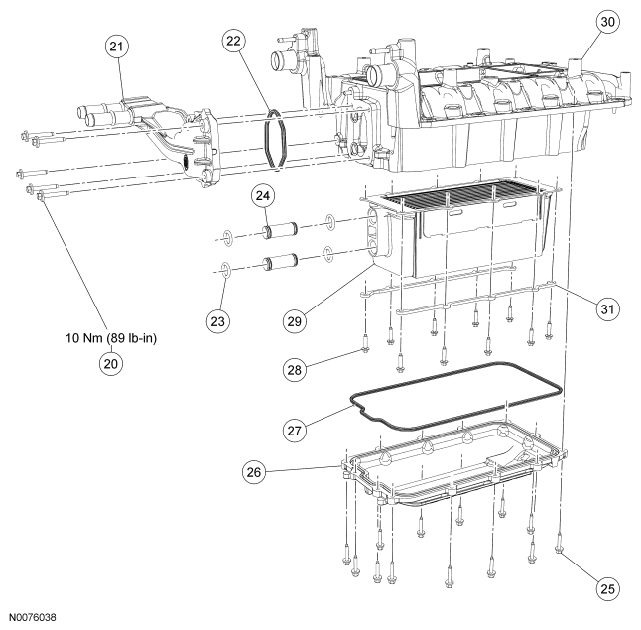

Fig 1: Exploded View Of Intake Manifold Assembly Components With Torque Specifications
G06395067Courtesy of FORD MOTOR CO.
Item Part Number Description
20 N807071 Charge Air Cooler (CAC) coolant tube assembly bolt (5 required)
21 9N491 CAC coolant tube assembly
22 9L438 CAC coolant tube assembly gasket
23 N802927 CAC tube O-ring seal (4 required)
24 9L442 CAC coolant connector tube (2 required)
25 W704682 Lower intake manifold cover bolt (13 required)
26 9S455 Lower intake manifold cover
27 9E436 Lower intake manifold cover gasket
28 N605893 CAC bolt (10 required)
29 6K775 CAC
30 9424 Upper intake manifold
31 6K808 CAC rail support (2 required)
