Intake Manifold Assembly (View 3 of 3): Assembly

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.
    NOTE: Apply threadlock and sealer to the CAC bolts prior to installation.

    Position the CAC, the 2 CAC rail supports and install the 10 bolts. Tighten in the sequence shown in illustration in 2 stages.

    • Stage 1: Tighten to 2 Nm (18 lb-in).
    • Stage 2: Tighten to 10 Nm (89 lb-in).

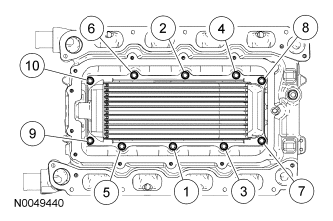

      Fig 1: Identifying CAC Bolts Tightening Sequence
      G06382423Courtesy of FORD MOTOR CO.
  2. Install a new gasket, the lower intake manifold cover and the 13 bolts. Tighten in the sequence shown in illustration.
    • Tighten to 10 Nm (89 lb-in).

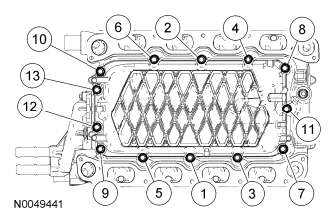

      Fig 2: Identifying Lower Intake Manifold Cover Bolts Tightening Sequence
      G06382424Courtesy of FORD MOTOR CO.
  3. NOTE: Apply clean engine coolant to the new CAC coolant connector tube O-ring seals.

    Install new O-ring seals on the CAC coolant connector tubes.

    • Install the CAC coolant connector tubes.
  4. Install a new gasket, the CAC coolant tube assembly and the 5 bolts.
    • Tighten to 10 Nm (89 lb-in).
  5. Install the IAT2 sensor. Tighten in 2 stages.
    • Stage 1: Tighten to 15 Nm (133 lb-in).
    • Stage 2: Tighten the IAT2 sensor until the locking section of the sensor is pointing outward.
  6. Install the vacuum tube.

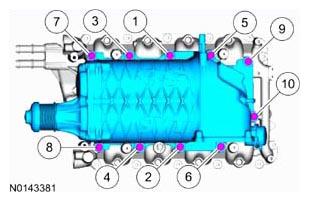

  7. Install a new gasket, the SC and the 10 bolts. Tighten in the sequence shown in illustration in 2 stages.
    • Stage 1: Tighten to 5 Nm (44 lb-in).
    • Stage 2: Tighten to 25 Nm (18 lb-ft).
      G08643461
  8. NOTE: Lubricate the new O-ring seal with clean engine oil prior to installation.

    Install new O-ring seals on each of the fuel injectors.

  9. Install the 8 fuel injectors onto the fuel rail and install 8 new fuel injector clips.
  10. Install the fuel rail and fuel injector assembly onto the intake manifold.
  11. Install the 4 fuel rail bolts.
    • Tighten to 10 Nm (89 lb-in).
  12. Connect the vacuum tube to the fuel rail and pressure temperature sensor.
  13. Install a new gasket, the EGR system module and the 2 bolts.
    • Tighten to 25 Nm (18 lb-ft).
  14. Install the upper and lower SC bypass actuator vacuum tubes.
  15. Install the SC bubbler hose.
  16. Install the heater hose.
