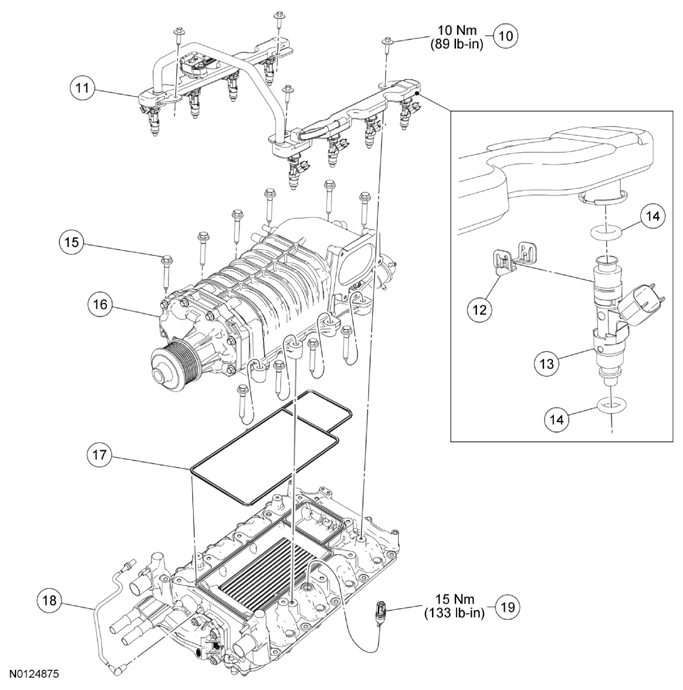

Intake Manifold Assembly (View 2 of 3)
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 10 | N804394 | Fuel rail bolt (4 required) |
| 11 | 9F792 | Fuel rail |
| 12 | 9F907 | Fuel injector clip (8 required) |
| 13 | 9F593 | Fuel injector (8 required) |
| 14 | 9229 | Fuel injector O-ring (16 required) |
| 15 | N806177 | SC bolt (10 required) |
| 16 | 6F066 | SC |
| 17 | 9H486 | SC gasket |
| 18 | 9E498 | Fuel rail and pressure and temperature sensor vacuum tube |
| 19 | 12A697 | Intake Air Temperature 2 (IAT2) sensor |
