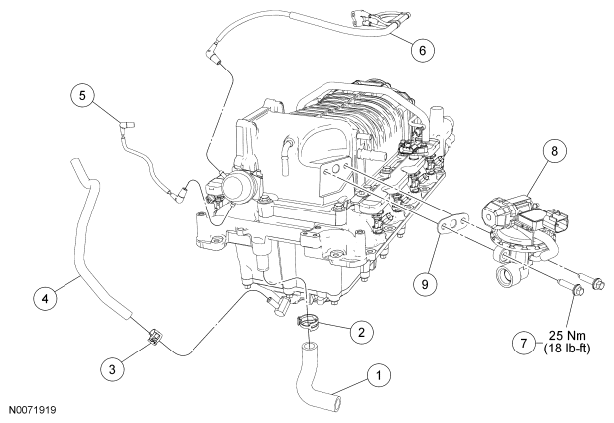

Intake Manifold Assembly (View 1 of 3)
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 18C553 | Heater hose |
| 2 | - | Heater hose clamp (part of 18C553) |
| 3 | W527352 | Supercharger (SC) bubbler hose clamp |
| 4 | 6C324 | SC bubbler hose |
| 5 | 9E498 | Lower SC bypass actuator vacuum tube |
| 6 | 9E498 | Upper SC bypass actuator vacuum tube |
| 7 | W701232 | EGR system module bolt (2 required) |
| 8 | 9Y456 | EGR system module |
| 9 | 9D476 | EGR system module gasket |
