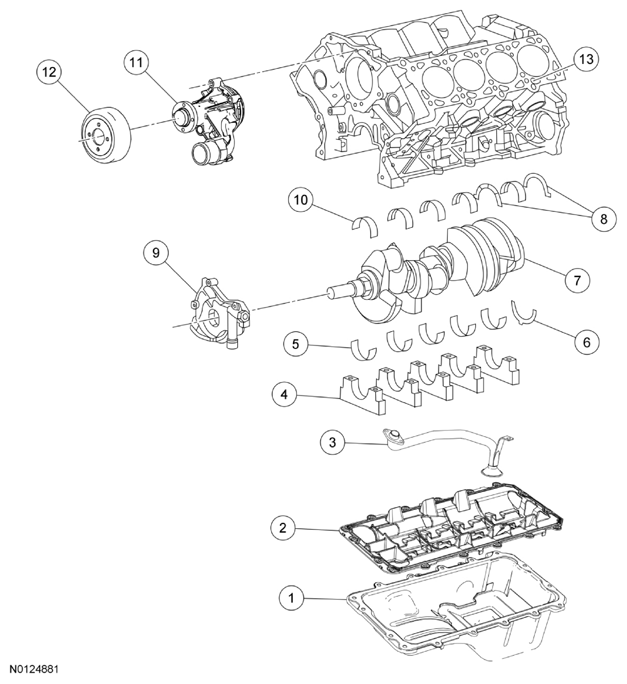

Lower End Components and Coolant Pump
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6675 | Oil pan |
| 2 | 6710 | Oil pan gasket |
| 3 | 6622 | Oil pump screen and pickup tube |
| 4 | 6325 | Main bearing cap |
| 5 | 6A338 | Crankshaft lower main bearing (5 required) |
| 6 | 6K302 | Crankshaft lower thrust washer |
| 7 | 6303 | Crankshaft |
| 8 | 6A341 | Crankshaft upper thrust washers (2 required) |
| 9 | 6621 | Oil pump |
| 10 | 6333 | Crankshaft upper main bearing (5 required) |
| 11 | 8501 | Coolant pump |
| 12 | 8A528 | Coolant pump pulley |
| 13 | 6010 | Cylinder block |
