Safety Belt Shoulder Height Adjuster: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Regular cab RH shown, others similar.

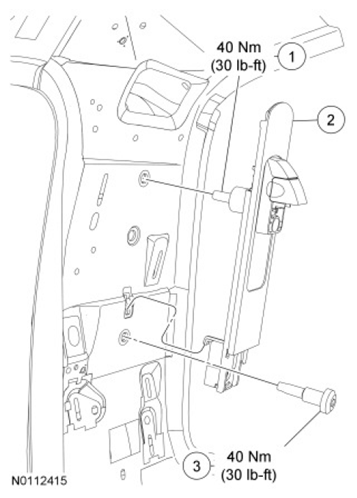

Fig 1: Safety Belt Shoulder Height Adjuster And Bolts With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Safety belt shoulder height adjuster bolt (part of 602B82)
2	602B82	Safety belt shoulder height adjuster
3	W713607	Safety belt shoulder height adjuster bolt
