Safety Belt Buckle - Rear, SuperCab: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

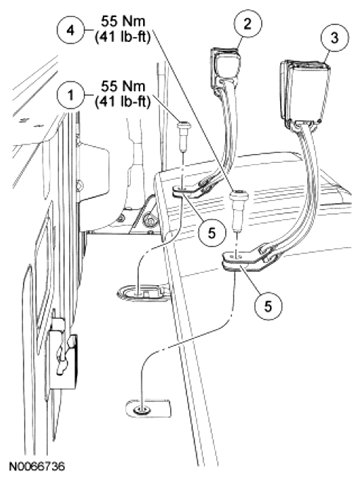

Fig 1: Exploded View Of Safety Belt Buckle With Torque Specifications (Rear, SuperCab)
G06779704Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Safety belt buckle bolt (part of 611B66)
2 611B66 LH outboard/LH center safety belt buckle assembly
3 611B66 RH outboard/RH center safety belt buckle assembly
4 - Safety belt buckle bolt (part of 611B66)
5 - Safety belt buckle felt washers (part of 611B66) (2 required)
