Safety Belt Buckle - Rear, Crew Cab, 60/40 Seat: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

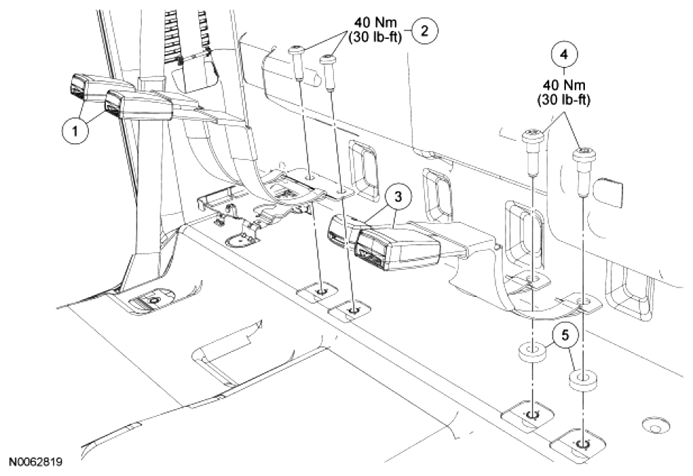

Fig 1: Exploded View Of Safety Belt Buckle With Torque Specifications (Rear, Crew Cab, 60/40 Seat)
G06779698Courtesy of FORD MOTOR CO.
Item Part Number Description
1 60044 RH side safety belt buckle assembly
2 - Safety belt buckle bolts (2 required) (part of 60044)
3 60045 LH side safety belt buckle assembly
4 - Safety belt buckle bolts (2 required) (part of 60045)
5 - LH side safety belt buckle assembly felt washers (2 required)
