Safety Belt Buckle - Front, Bucket Seat: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH shown, RH similar.

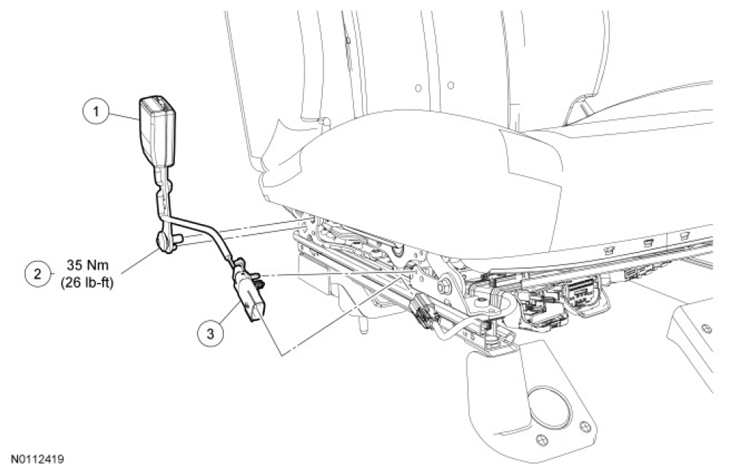

Fig 1: Safety Belt Buckle, Connector And Bolt With Torque Specifications (Front, Bucket Seat)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	61203 LH/61202 RH	Safety belt buckle
2	-	Safety belt buckle bolt (part of 61203/61202)
3	-	Safety belt buckle electrical connector (part of 61203) (driver only)
