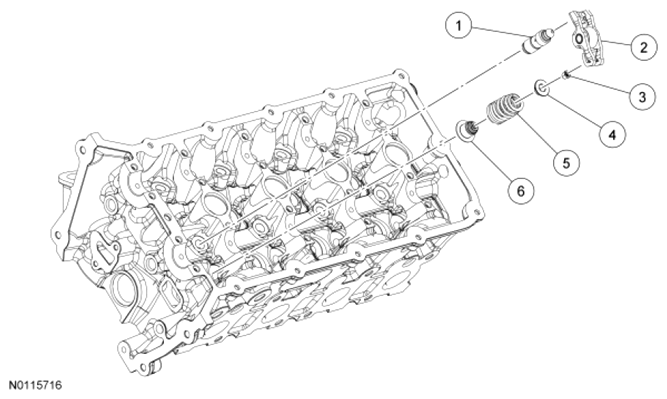

Valve Train Components - Exploded View
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6500 | Hydraulic lash adjuster (32 required) |
| 2 | 6564 | Camshaft roller follower (32 required) |
| 3 | 6518 | Valve spring retainer key (64 required) |
| 4 | 6514 | Valve spring retainer (32 required) |
| 5 | 6513 | Valve spring (32 required) |
| 6 | 6571 | Valve seal (32 required) |
- Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
