Wiring Harness

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

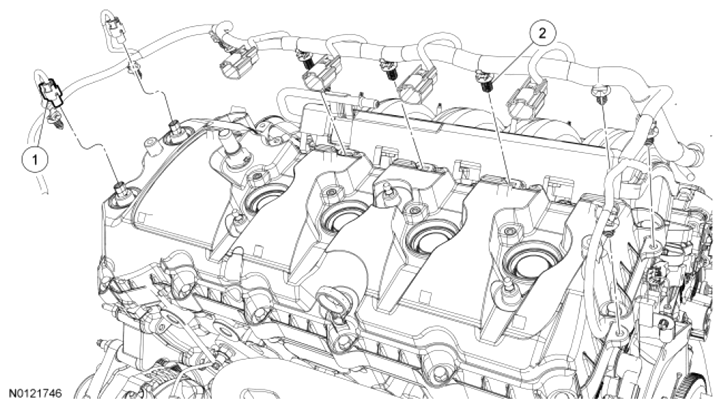

Fig 1: Identifying Variable Camshaft Timing Variable Force Solenoid Electrical Connector And Wiring Harness Retainer
G07474017Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Variable Camshaft Timing (VCT) variable force solenoid electrical connector (part of 12A581) (2 required)
2   Wiring harness retainer (part of 12A581) (10 required)
