Spark Plug Tube Seals and Variable Camshaft Timing (VCT) Solenoid Seals: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

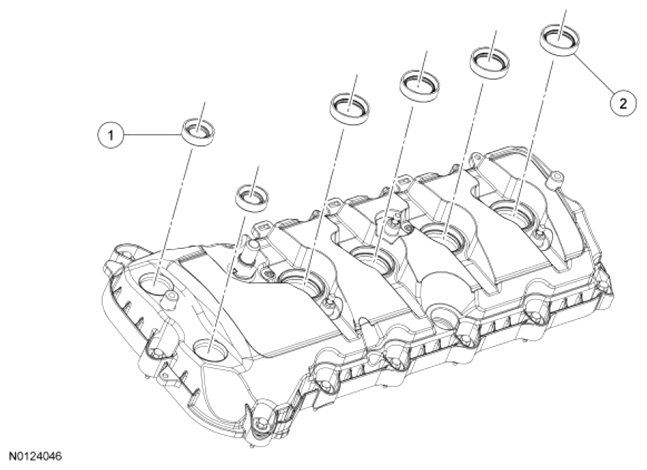

Fig 1: Identifying Spark Plug Tube Seals And Variable Camshaft Timing Solenoid Seals
G07474019Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6C535 Variable Camshaft Timing (VCT) variable force solenoid seal (2 required)
2 6C535 Spark plug tube seal (4 required)
