Timing Drive Components: Removal

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. Remove the engine front cover. For additional information, refer to ENGINE FRONT COVER .

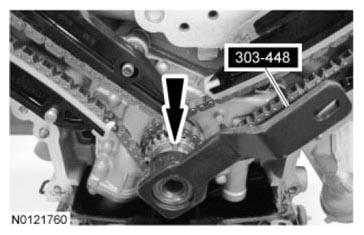

  2. Using the crankshaft holding tool, rotate the crankshaft clockwise until the keyway is at the 12 o'clock position.
    G07474071

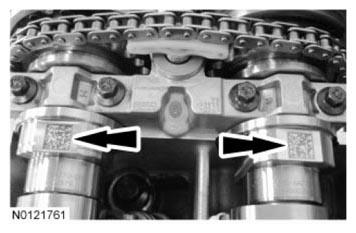

  3. Verify the data matrix on the camshafts is facing up, if not, rotate the crankshaft clockwise one revolution.
    G07408938

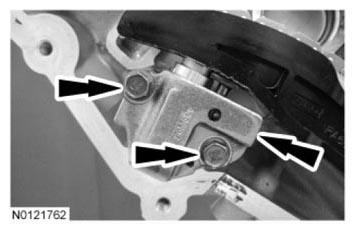

  4. Remove the 2 bolts and the RH primary timing chain tensioner.
    G07408939

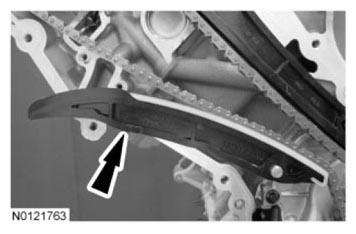

  5. NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to remove the RH timing chain tensioner arm. Return the crankshaft keyway to the 12 o'clock position after removing the RH timing chain tensioner arm.

    Remove the RH timing chain tensioner arm.

    G07408940

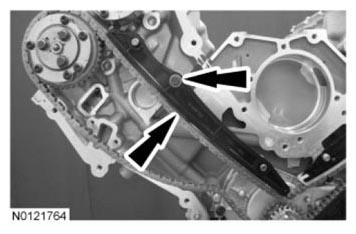

  6. NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to remove the RH timing chain guide. Return the crankshaft keyway to the 12 o'clock position after removing the RH timing chain guide.

    Remove the bolt and the RH timing chain guide.

    G07408941

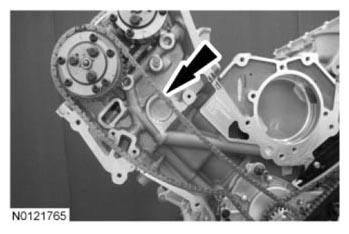

  7. Remove the RH primary timing chain.
    G07408942

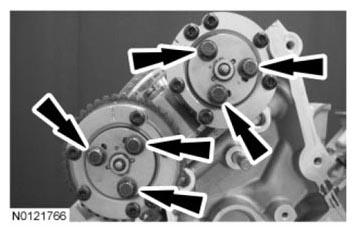

  8. Remove the 3 RH intake Variable Camshaft Timing (VCT) assembly bolts and the 3 RH exhaust VCT assembly bolts.
    G07408943

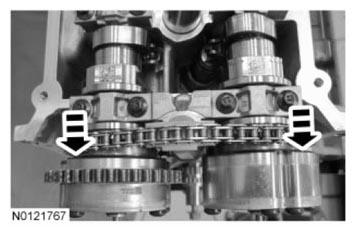

  9. Slide the RH VCT assemblies and secondary timing chain forward 2 mm (0.078 in).
    G07408944

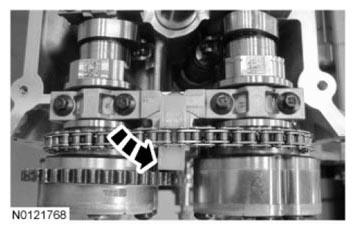

  10. Depress the RH secondary timing chain tensioner and turn the tensioner 90 degrees.
    G07408945

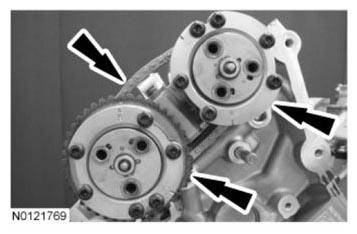

  11. Remove the RH VCT assemblies and the RH secondary timing chain.
    G07408946

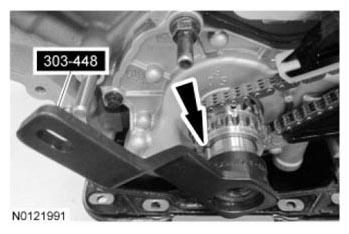

  12. Using the crankshaft holding tool, rotate the crankshaft counterclockwise until the crankshaft keyway is at the 9 o'clock position.
    G07408947

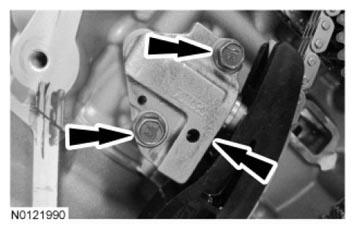

  13. Remove the 2 bolts and the LH primary timing chain tensioner.
    G07408948

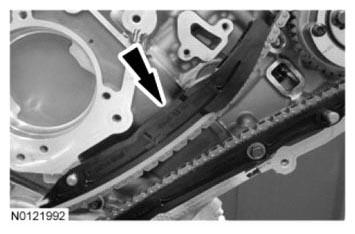

  14. NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to remove the LH timing chain tensioner arm. Return the crankshaft keyway to the 9 o'clock position after removing the LH timing chain tensioner arm.

    Remove the LH timing chain tensioner arm.

    G07408949

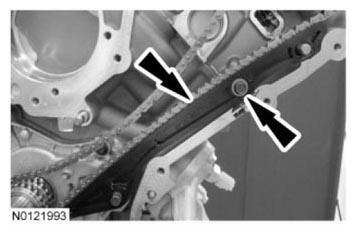

  15. NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to remove the LH timing chain guide. Return the crankshaft keyway to the 9 o'clock position after removing the LH timing chain guide.

    Remove the bolt and the LH timing chain guide.

    G07408950

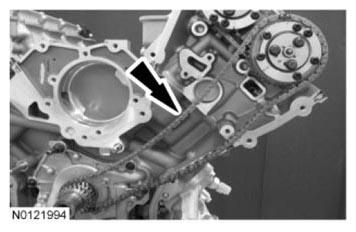

  16. Remove the LH primary timing chain.
    G07408951

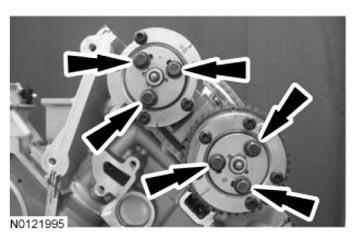

  17. Remove the 3 LH intake Variable Camshaft Timing (VCT) assembly bolts and the 3 LH exhaust VCT assembly bolts.
    G07408952

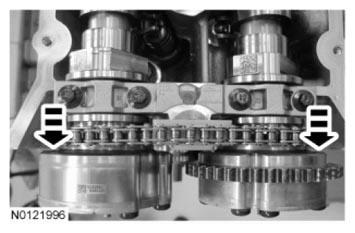

  18. Slide the LH VCT assemblies and secondary timing chain forward 2 mm (0.078 in).
    G07408953

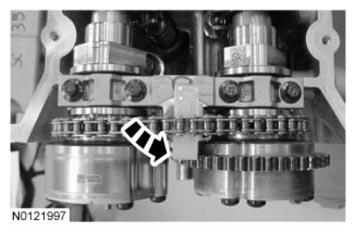

  19. Depress the LH secondary timing chain tensioner and turn the tensioner 90 degrees.
    G07408954

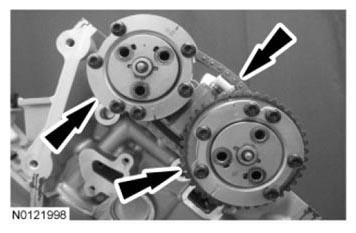

  20. Remove the LH VCT assemblies and the LH secondary timing chain.
    G07408955

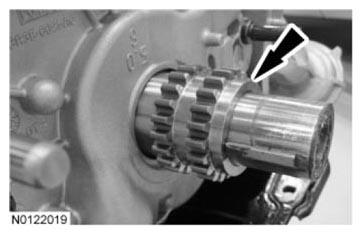

  21. Remove the crankshaft sprocket.
    G07474090
