Timing Drive Components: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOLS

Holding Tool, Crankshaft
303-448 (T93P-6303-A)

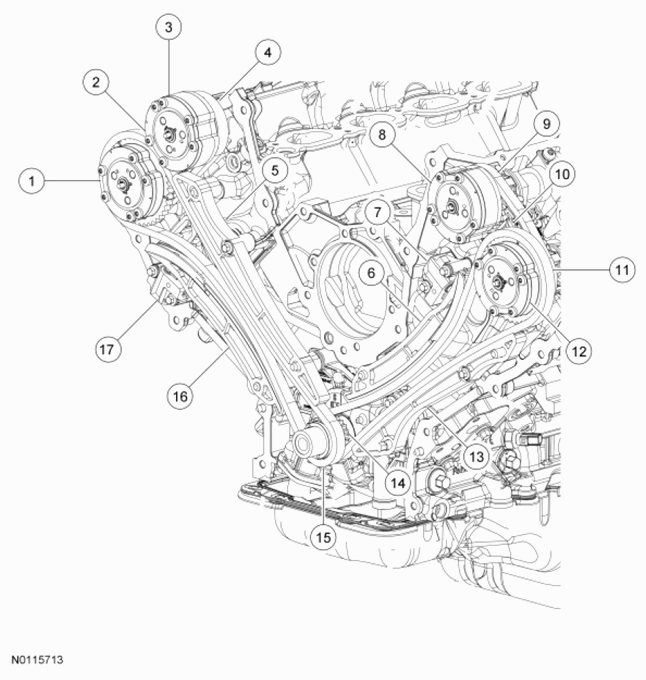

Fig 1: Identifying Timing Drive Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6256	RH exhaust camshaft Variable Camshaft Timing (VCT)
2	6K254	RH secondary tensioner
3	6256	RH intake camshaft VCT
4	6268	RH secondary timing chain
5	6M256	RH timing chain guide
6	6K255	LH timing chain tensioner arm
7	6L266	LH primary tensioner
8	6256	LH intake camshaft VCT
9	6268	LH secondary timing chain
10	6K254	LH secondary tensioner
11	6268	LH primary timing chain
12	6256	LH exhaust camshaft VCT
13	6B274	LH timing chain guide
14	6306	Crankshaft sprocket
15	6268	RH timing chain
16	6K255	RH timing chain tensioner arm
17	6L266	RH primary tensioner
