Oil Level Indicator and Tube: Removal

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. Remove the LH valve cover. For additional information, refer to VALVE COVER - LH .

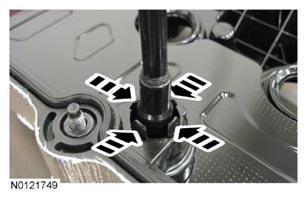

  2. Depress the 4 tabs and remove the oil level indicator tube.
    G08641430
