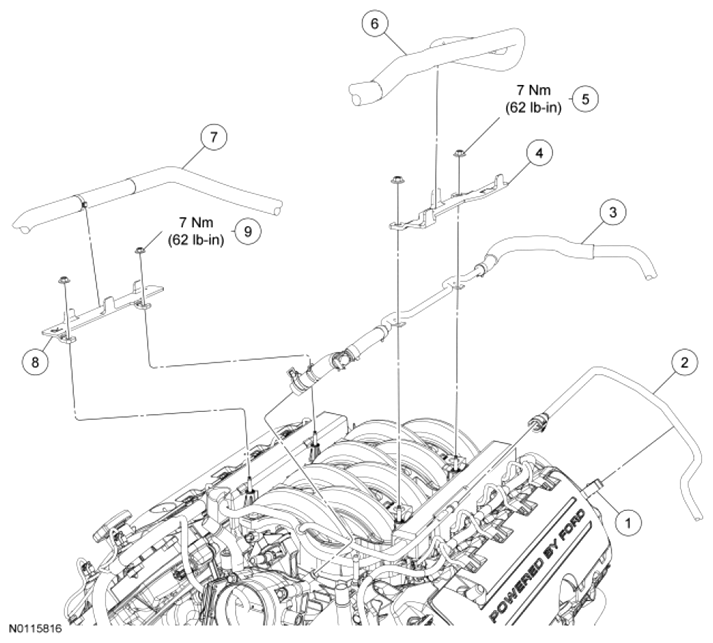

Hoses and Supports
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel supply tube retaining clip (part of 9J280) |
| 2 | 9J280 | Fuel supply tube |
| 3 | 9C482 | Vacuum tube |
| 4 | 18D690 | LH heater hose support |
| 5 | W713946 | LH heater hose support nut (2 required) |
| 6 | 18472 | LH heater hose |
| 7 | 18472 | RH heater hose |
| 8 | 18D690 | RH heater hose support |
| 9 | W713946 | RH heater hose support nut (2 required) |
