Transmission Cooler Tube Bracket and Wiring Harness
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

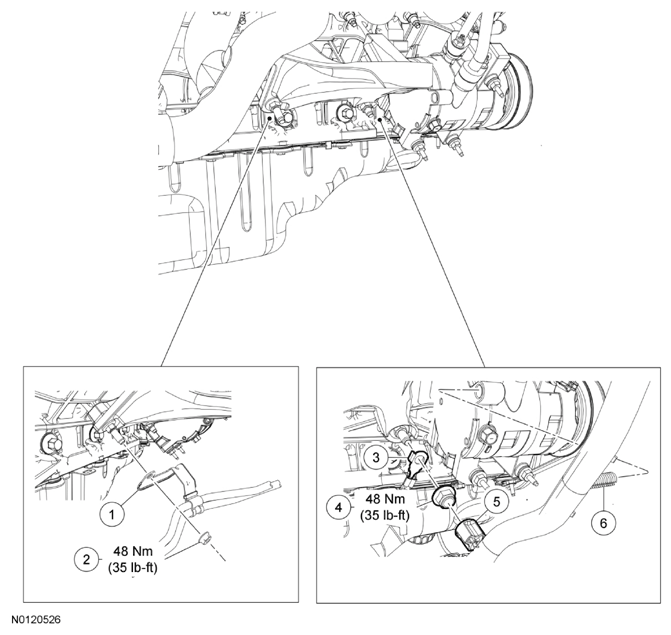

Fig 1: Transmission Cooler Tube Bracket, Ground Cable, Wiring Harness Retainer And Nuts With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Transmission cooler tube bracket (part of 7R081B) |
| 2 | W520103 | Transmission cooler tube bracket nut |
| 3 | 14290 | Ground cable |
| 4 | W520103 | Ground cable nut |
| 5 | - | Wiring harness retainer (part of 12A581) |
| 6 | - | Wiring harness retainer (part of 12A581) |
