Oil Pan
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

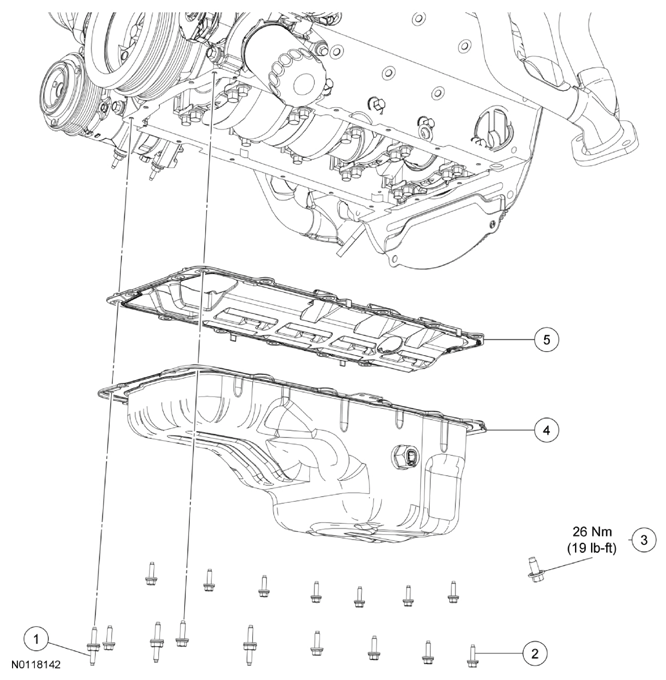

| Item |
Part Number |
Description |
| 1 |
W714963 |
Oil pan stud bolt (3 required) |
| 2 |
W714962 |
Oil pan bolt (13 required) |
| 3 |
- |
Oil drain plug (part of 6675) |
| 4 |
6675 |
Oil pan |
| 5 |
6C878 |
Oil pan baffle and gasket |
