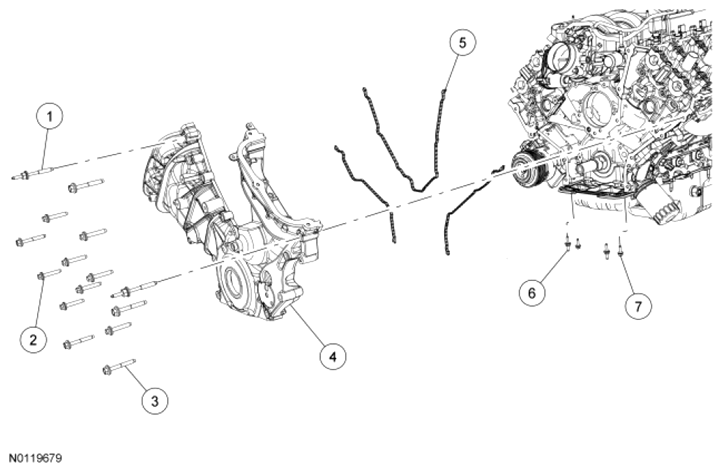

Engine Front Cover (View 4 of 4): Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W704919 | Engine front cover stud (2 required) |
| 2 | W714925 | Engine front cover bolt (8 required) |
| 3 | W704920 | Engine front cover bolt (5 required) |
| 4 | 6019 | Engine front cover |
| 5 | 6D081 | Engine front cover gasket (3 required) |
| 6 | W714963 | Oil pan stud bolt (2 required) |
| 7 | W714962 | Oil pan bolt (2 required) |
