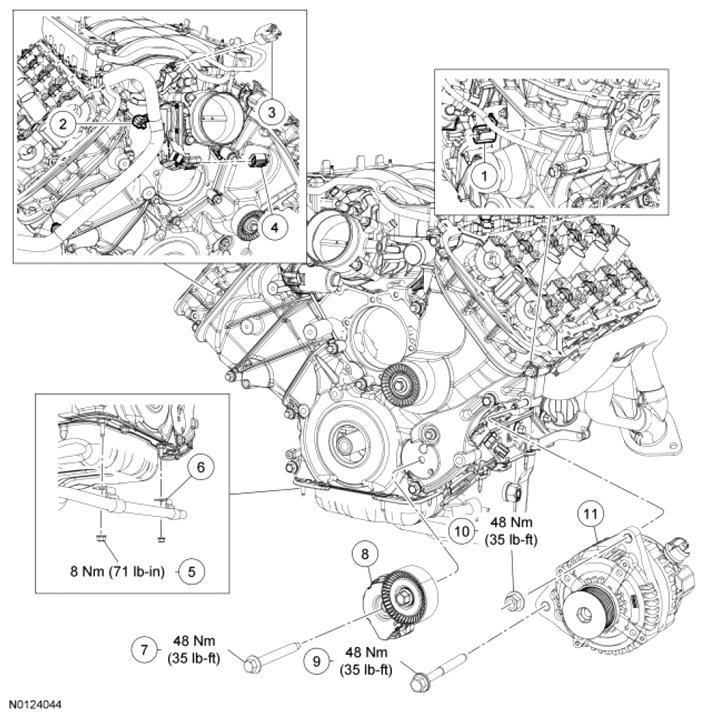

Engine Front Cover (View 3 of 4)
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Wiring harness retainer (part of 12A581) |
| 2 | - | Wiring harness retainer (part of 12A581) (2 required) |
| 3 | - | Throttle body electrical connector (part of 12A581) |
| 4 | - | Evaporative Emission (EVAP) purge valve electrical connector (part of 12A581) |
| 5 | W705790 | Wiring harness retainer nut (2 required) |
| 6 | - | Wiring harness retainer (part of 14300) (2 required) |
| 7 | W709638 | Accessory drive belt tensioner bolt |
| 8 | 6B209 | Accessory drive belt tensioner |
| 9 | W715092 | Generator bolt |
| 10 | W520414 | Generator nut |
| 11 | 10346 | Generator |
