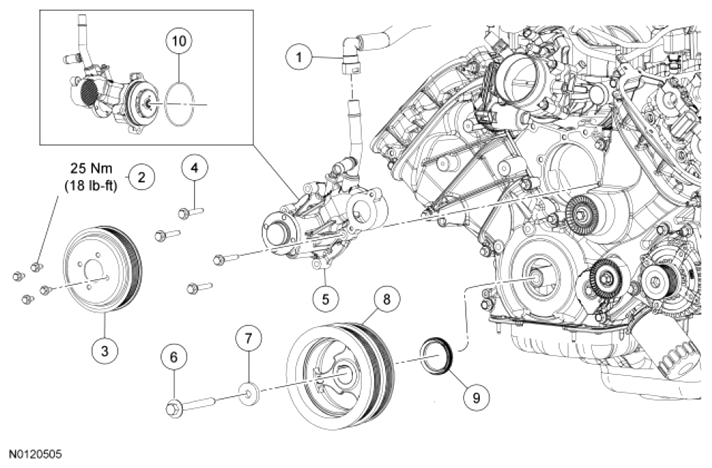

Engine Front Cover (View 2 of 4)
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 18472 | Heater hose |
| 2 | N806282 | Coolant pump pulley bolt (4 required) |
| 3 | 8509 | Coolant pump pulley |
| 4 | W714925 | Coolant pump bolt (4 required) |
| 5 | 8501 | Coolant pump |
| 6 | 6A340 | Crankshaft pulley bolt |
| 7 | 6378 | Crankshaft pulley bolt washer |
| 8 | 6312 | Crankshaft pulley |
| 9 | 6700 | Crankshaft front oil seal |
| 10 | 8507 | O-ring seal |
