Crankshaft Rear Seal: Installation

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

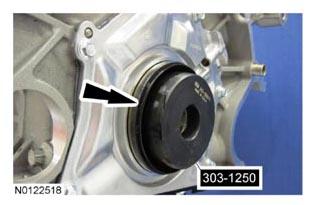

  1. NOTE: Lubricate the seal lips and bore with clean engine oil prior to installation.

    Position the Rear Main Seal Installer onto the end of the crankshaft and slide a new crankshaft rear seal onto the tool.

    G08641441

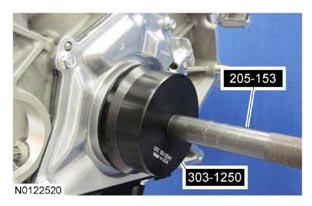

  2. Using the Rear Main Seal Installer and Handle, install the new crankshaft rear seal.
    G08641442
  3. Install the crankshaft sensor ring.
  4. Install the engine separator plate.
  5. Install the flywheel or flexplate. For additional information, refer to FLEXPLATE  or FLYWHEEL AND CRANKSHAFT REAR SEAL - EXPLODED VIEW  and FLEXPLATE  or FLYWHEEL .
