Timing Drive Components
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

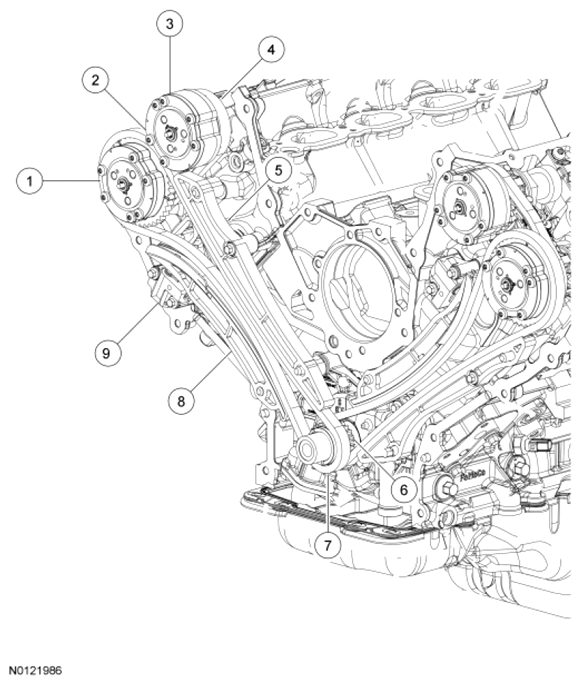

| Item | Part Number | Description |
|---|---|---|
| 1 | 3256 | RH exhaust Variable Camshaft Timing (VCT) assembly |
| 2 | 6K254 | RH secondary timing chain tensioner |
| 3 | 6256 | RH intake VCT assembly |
| 4 | 6268 | RH secondary timing chain |
| 5 | 6M256 | RH timing chain guide |
| 6 | 6306 | Crankshaft sprocket |
| 7 | 6268 | RH primary timing chain |
| 8 | 6K255 | RH timing chain tensioner arm |
| 9 | 6L266 | RH primary timing chain tensioner |
