Camshaft - RH: Camshafts: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

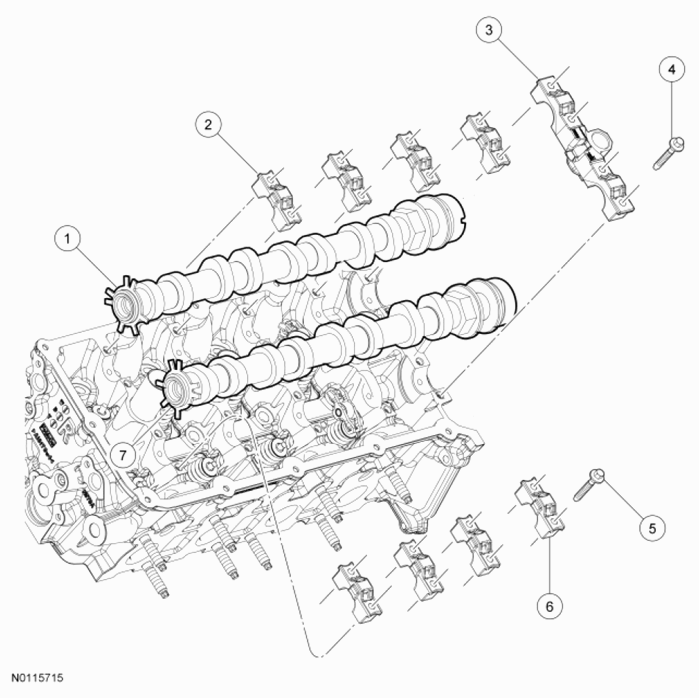

| Item | Part Number | Description |
|---|---|---|
| 1 | 6250 | RH intake camshaft |
| 2 | - | Intake camshaft bearing cap (part of 6049) (4 required) |
| 3 | - | Front camshaft bearing mega cap (part of 6049) |
| 4 | N806183 | Front camshaft bearing mega cap bolt (4 required) |
| 5 | N806183 | Intake/exhaust camshaft bearing cap bolt (16 required) |
| 6 | - | Exhaust camshaft bearing cap (part of 6049) (4 required) |
| 7 | 6250 | RH exhaust camshaft |
