Engine - Lower End, Except Boss® 302

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

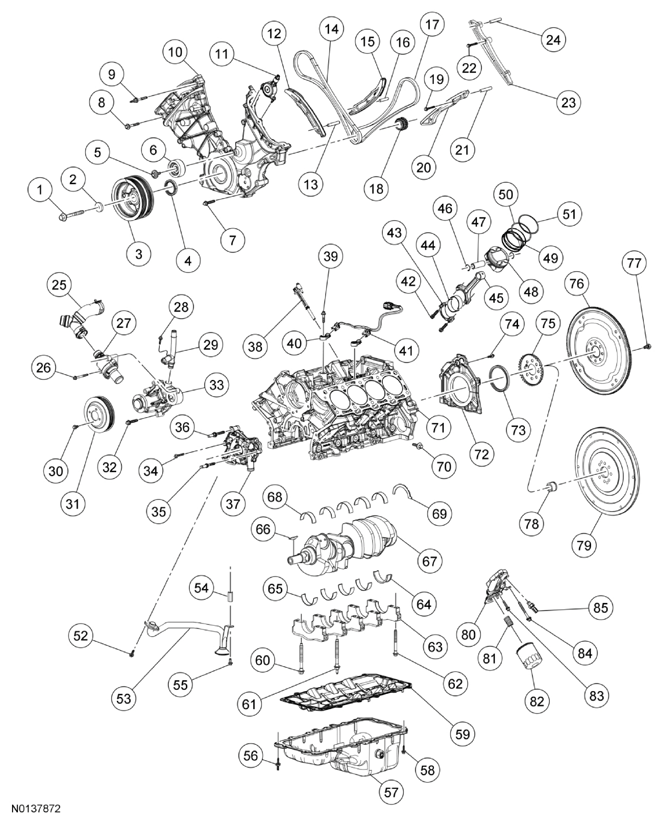

Fig 1: Exploded View Of Engine (Lower End, Except Boss® 302)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6A340	Crankshaft pulley bolt
2	N807033	Crankshaft pulley washer
3	6316	Crankshaft pulley
4	6700	Crankshaft front oil seal
5	W707288	Accessory drive belt idler pulley bolt
6	19A216	Accessory drive belt idler pulley
7	W714925	Engine front cover bolt (8 required)
8	W704920	Engine front cover bolt (5 required)
9	W704919	Engine front cover stud bolt (2 required)
10	6019	Engine front cover
11	6B297	Variable Camshaft Timing (VCT) variable force solenoid (4 required)
12	6K255	RH timing chain tensioner arm
13	W714258	RH timing chain tensioner arm pin
14	6268	RH primary timing chain
15	6K255	LH timing chain tensioner arm
16	W701501	LH timing chain tensioner arm pin
17	6268	LH primary timing chain
18	6306	Crankshaft sprocket
19	N807352	LH timing chain guide bolt
20	6B274	LH timing chain guide
21	W714258	LH timing chain guide pin
22	N807352	RH timing chain guide bolt
23	6M256	RH timing chain guide
24	W714258	RH timing chain guide pin
25	8566	Coolant bypass tee
26	W713197	Thermostat housing bolt (2 required)
27	8A586	Thermostat housing
28	W503277	Heater outlet tube bolt
29	18663	Heater outlet tube
30	N806282	Coolant pump pulley bolt (4 required)
31	8509	Coolant pump pulley
32	W714925	Coolant pump bolt
33	8501	Coolant pump
34	N806183	Oil pump bolt (2 required)
35	W714252	Oil pump stud bolt
36	W714251	Oil pump stud bolt
37	6600	Oil pump
38	6C315	Crankshaft Position (CKP) sensor
39	W500110	Knock Sensor (KS) bolt (2 required)
40	12A699	KS (2 required)
41	14A411	KS wiring harness
42	6214	Connecting rod cap bolt (16 required)
43	-	Connecting rod cap (part of 6200) (8 required)
44	6211	Connecting rod bearing (16 required)
45	6200	Connecting rod (8 required)
46	6140	Piston pin retainer (16 required)
47	6135	Piston pin (8 required)
48	6110	Piston (8 required)
49	-	Outer oil control ring (part of 6148) (16 required)
50	-	Lower compression ring (part of 6148) (8 required)
51	-	Upper compression ring (part of 6148) (8 required)
52	W714962	Oil pump screen and pickup tube bolt (2 required)
53	6622	Oil pump screen and pickup tube
54	N806180	Oil pump screen and pickup tube spacer
55	N605904	Oil pump screen and pickup tube bolt
56	W714963	Oil pan stud bolt (3 required)
57	6675	Oil pan
58	W714962	Oil pan bolt (13 required)
59	6C878	Oil pan baffle and gasket
60	6345	Crankshaft main bearing cap bolt (9 required)
61	6K258	Crankshaft main bearing cap stud bolt
62	6345	Crankshaft main bearing cap bolt (10 required)
63	-	Crankshaft main bearing cap (part of 6010) (5 required)
64	6D309	Crankshaft lower main bearing
65	6D309	Crankshaft lower main bearing (4 required)
66	N806201	Woodruff key
67	6303	Crankshaft
68	6D309	Crankshaft upper main bearing (5 required)
69	6A341	Thrust washer
70	6C358	Crankshaft main bearing cap side bolt (10 required)
71	6010	Engine block
72	6K318	Crankshaft rear seal retainer plate
73	6701	Crankshaft rear seal
74	W714962	Crankshaft rear seal retainer plate bolt (6 required)
75	12A227	Crankshaft sensor ring
76	6375	Flexplate
77	6379	Flexplate bolt (8 required)
78	7120	Input shaft bearing
79	6375	Flywheel
80	6881	Oil filter adapter
81	6890	Oil filter mounting insert bolt
82	6731	Oil filter
83	W714974	Oil filter adapter bolt (2 required)
84	W503306	Oil filter adapter bolt
85	9278	Engine Oil Pressure (EOP) switch
