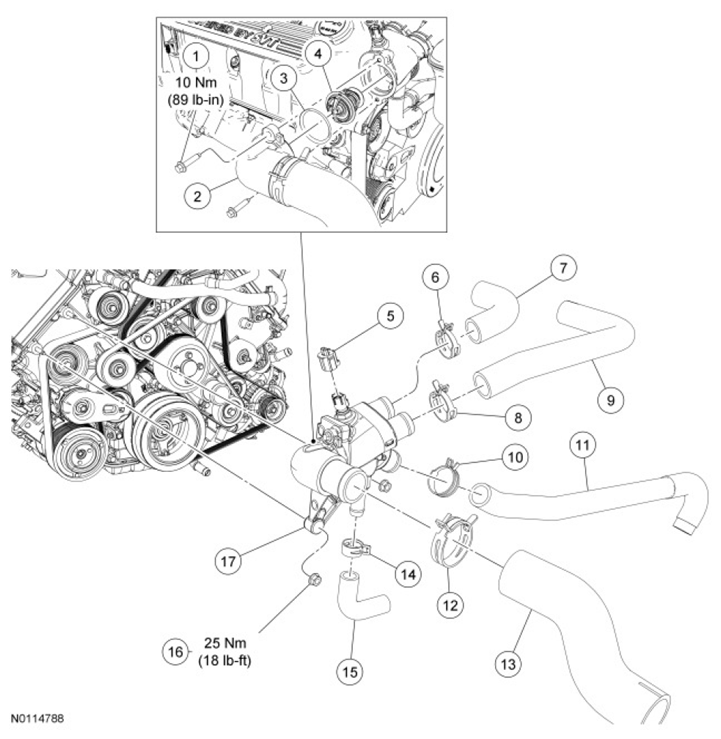

Thermostat and Thermostat Housing - 5.8L (4V)
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | N605893 | Coolant outlet connector bolt (2 required) |
| 2 | 8594 | Coolant outlet connector |
| 3 | 8255 | Thermostat O-ring seal |
| 4 | 8575 | Thermostat |
| 5 | - | ECT sensor electrical connector (part of 12C508) |
| 6 | 8A586 | RH thermostat housing-to-intake manifold hose clamp |
| 7 | 8A595 | RH thermostat housing-to-intake manifold hose |
| 8 | 8A586 | LH thermostat housing-to-intake manifold hose clamp |
| 9 | 8A595 | LH thermostat housing-to-intake manifold hose |
| 10 | 15161 | Lower radiator hose clamp |
| 11 | 8B273 | Lower radiator hose |
| 12 | 8287 | Upper radiator hose clamp |
| 13 | 8B274 | Upper radiator hose |
| 14 | 8287 | Thermostat housing-to-oil filter adapter hose clamp |
| 15 | 6B851 | Thermostat housing-to-oil filter adapter hose |
| 16 | W520413 | Thermostat housing nut (2 required) |
| 17 | 9K478 | Thermostat housing |
- Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
