Cooling Fan Motor and Shroud - 5.8L (4V)

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Air Cleaner (ACL) assembly. Refer to INTAKE AIR DISTRIBUTION & FILTERING .

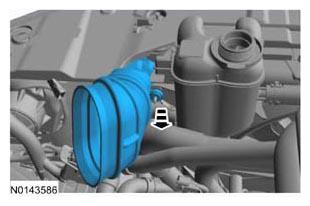

  2. G08643854
    • To install, tighten to 8 Nm (71 lb-in).

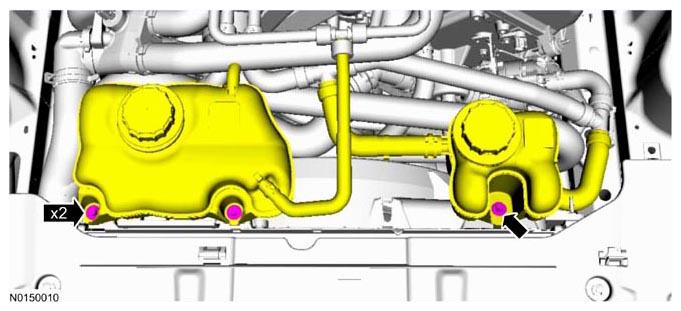

      G08643855
    2. To install, tighten to 8 Nm (71 lb-in).

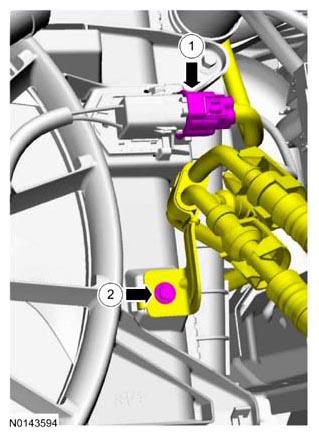

      G08643856
    1. To install, tighten to 8 Nm (71 lb-in).

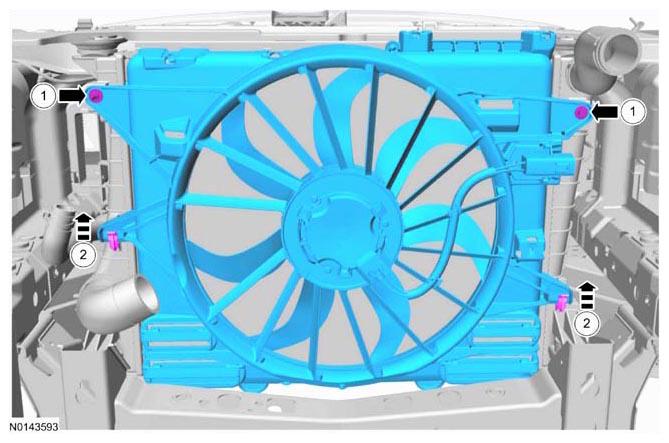

      G08643857
  6. To install, reverse the removal procedure.
