Coolant Pump - 3.7L: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® Orange Antifreeze/Coolant Concentrated VC-3-B (US); CVC-3-B2 (Canada)	WSS-M97B44-D
Motorcraft® Orange Antifreeze/Coolant Prediluted VC-3DIL-B (US); CVC-3DIL-B (Canada)	WSS-M97B44-D2

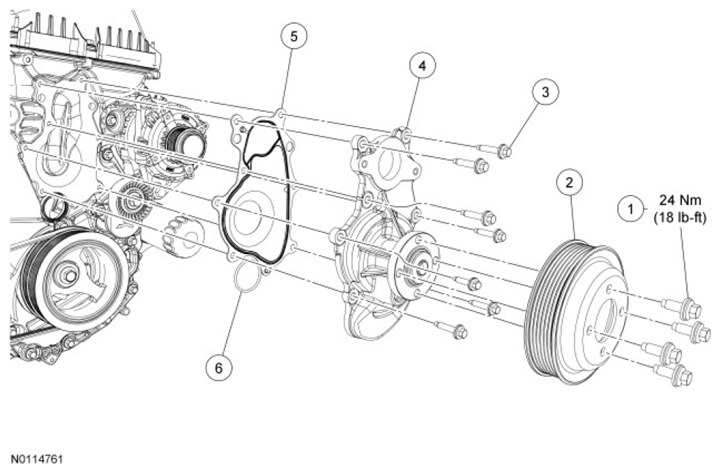

Fig 1: Exploded View Of Coolant Pump With Torque Specifications (3.7L)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W503291	Coolant pump pulley bolt (4 required)
2	8A528	Coolant pump pulley
3	W503278	Coolant pump bolt (7 required)
4	8501	Coolant pump
5	8507	Coolant pump gasket (part of 8501)
6	8565	Coolant pump O-ring seal (part of 8501)
