Valve Train Components - Exploded View

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Valve Train Components (View 1 of 2)

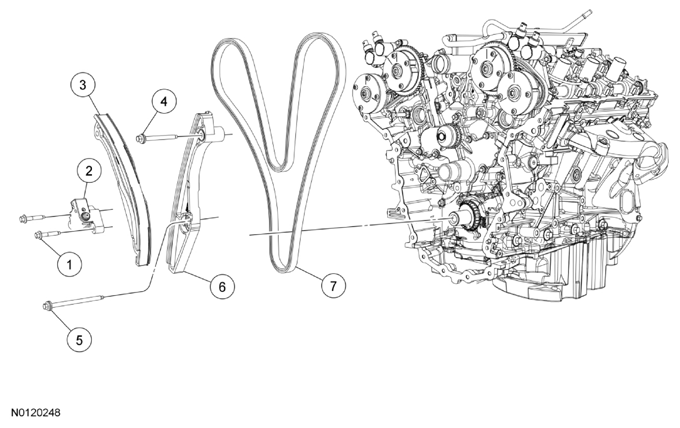

Fig 1: Identifying Valve Train Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W709818	Primary timing chain tensioner bolt (2 required)
2	6L266	Primary timing chain tensioner
3	6K255	RH primary timing chain tensioner arm
4	W715145	LH primary timing chain guide bolt
5	W714094	LH primary timing chain guide bolt
6	6B274	LH primary timing chain guide
7	6268	Primary timing chain

NOTE: Valve Train Components (View 2 of 2)

NOTE: LH shown in illustration, RH similar.

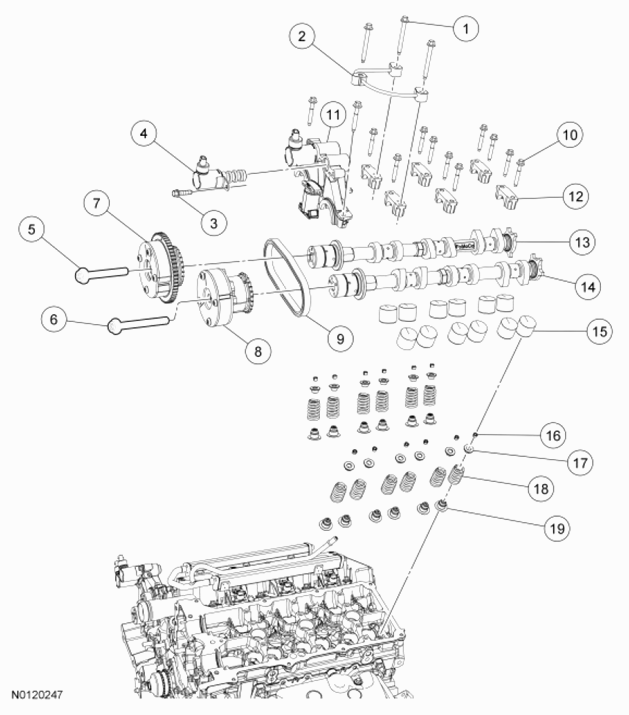

Fig 2: Exploded View Of Valve Train Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500305	Valve train oil tube bolt (3 required)
2	6K602	Valve train oil tube
3	W500215	Exhaust camshaft Variable Camshaft Timing (VCT) oil control solenoid bolt
4	6M280	Exhaust camshaft VCT oil control solenoid
5	6279	Intake camshaft VCT assembly bolt
6	6279	Exhaust camshaft VCT assembly bolt
7	6256	Intake camshaft VCT assembly
8	6256	Exhaust camshaft VCT assembly
9	6268	LH secondary timing chain
10	W710702	Camshaft cap bolt (12 required)
11	6B280	Camshaft mega cap
12	6A258	Camshaft cap (12 required)
13	6250	Intake camshaft
14	6250	Exhaust camshaft
15	6500	Valve tappet (12 required)
16	6518	Valve spring retainer key (24 required)
17	6514	Valve spring retainer (12 required)
18	6513	Valve spring (12 required)
19	6571	Valve stem seal (12 required)

Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
