Timing Drive Components: Removal

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.

All engines

  1. Remove the engine front cover. For additional information, refer to ENGINE FRONT COVER .

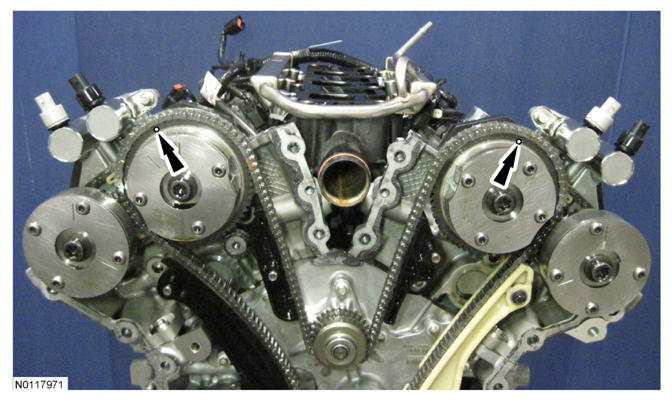

  2. Rotate the crankshaft clockwise and align the timing marks on the intake Variable Camshaft Timing (VCT) assemblies as shown in illustration.
    G08640063

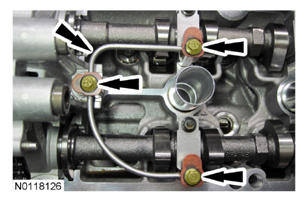

  3. Remove the 3 bolts and the LH valve train oil tube.
    G08640064

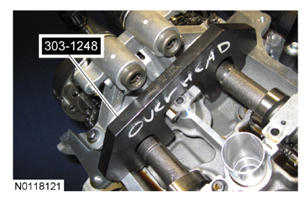

  4. NOTE: The Camshaft Holding Tool will hold the camshafts in the Top Dead Center (TDC) position.

    Install the Camshaft Holding Tool onto the flats of the LH camshafts.

    G08640065

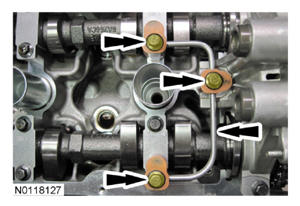

  5. Remove the 3 bolts and the RH valve train oil tube.
    G08640066

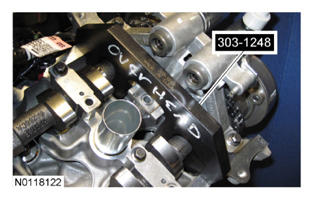

  6. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install the Camshaft Holding Tool onto the flats of the RH camshafts.

    G08640067
    NOTE: The following 3 steps are for primary timing chains that the colored links are not visible.

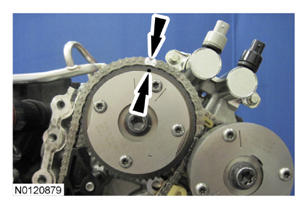

  7. Mark the timing chain link that aligns with the timing mark on the LH intake VCT assembly as shown in illustration.
    G08640068

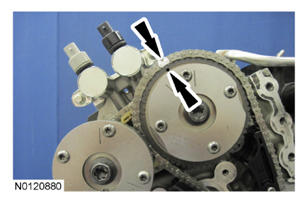

  8. Mark the timing chain link that aligns with the timing mark on the RH intake VCT assembly as shown in illustration.
    G08640069

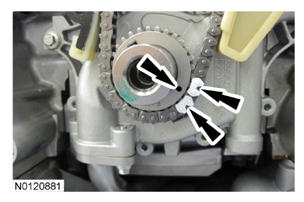

  9. NOTE: The crankshaft sprocket timing mark should be between the 2 colored links.

    Mark the 2 timing chain links that align with the timing mark on the crankshaft sprocket as shown in illustration.

    G08640070

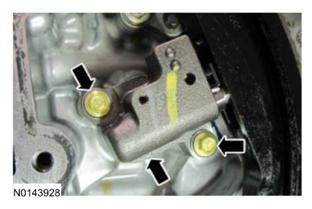

  10. Remove the 2 bolts and the primary timing chain tensioner.
    G08640071

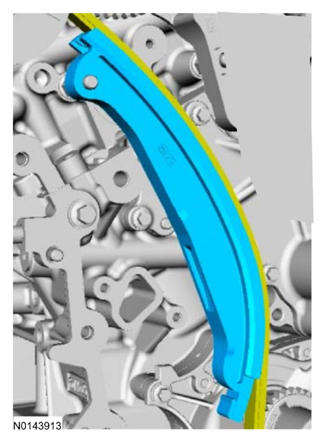

  11. Remove the primary timing chain tensioner arm.
    G08640072

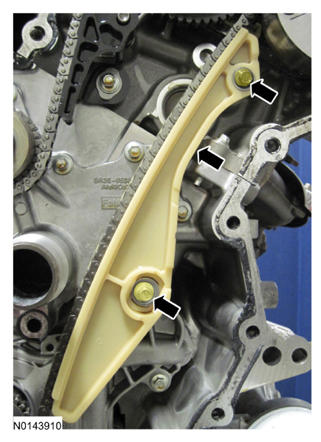

  12. Remove the 2 bolts and the lower LH primary timing chain guide.
    G08640073

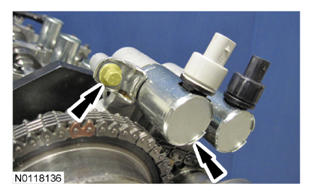

  13. NOTE: Removal of the VCT oil control solenoid will aid in the removal of the primary timing chain.
    NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoid.
    NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

    Remove the bolt and the LH intake VCT oil control solenoid.

    G08640074
  14. NOTE: Removal of the VCT oil control solenoid will aid in the removal of the primary timing chain.
    NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoid.
    NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

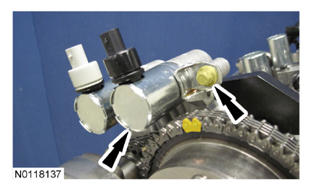

    Remove the bolt and the RH intake VCT oil control solenoid.

    G08640075
  15. Remove the primary timing chain.
    G07986672
  16. Remove the crankshaft timing chain sprocket.
    G07986673
  17. NOTE: Do not use power tools to remove the bolt or damage to the LH primary timing chain guide may occur.

    Remove the bolt and the upper LH primary timing chain guide.

    G07410380
  18. NOTE: The 2 VCT oil control solenoids are removed for clarity.
    NOTE: The Secondary Chain Hold Down is inserted through a hole in the top of the mega cap.

    Compress the LH secondary timing chain tensioner and install the Secondary Chain Hold Down in the hole on the rear of the secondary timing chain tensioner guide and let it hold against the mega cap to retain the tensioner in the collapsed position.

    G07410381
  19. Remove and discard the 2 LH VCT assembly bolts.
    G07410382
  20. Remove the 2 LH VCT assemblies and secondary timing chain.
    G07410383
  21. NOTE: The 2 VCT oil control solenoids are removed for clarity.
    NOTE: The Secondary Chain Hold Down is inserted through a hole in the top of the mega cap.

    Compress the RH secondary timing chain tensioner and install the Secondary Chain Hold Down in the hole on the rear of the secondary timing chain tensioner guide and let it hold against the mega cap to retain the tensioner in the collapsed position.

    G07399063
  22. Remove and discard the 2 RH VCT assembly bolts.
    G07399064
  23. Remove the 2 RH VCT assemblies and secondary timing chain.
    G07399065
  24. NOTE: Do not use power tools to remove the bolt or damage to the RH primary timing chain guide may occur.

    Remove the bolt and the RH primary timing chain guide.

    G07410387
  25. Remove the 9 bolts and the channel cover plate.
    • Discard the gasket.
      G07410388

    Engines with secondary timing chain tensioner removed

    NOTE: The following steps are only for the replacement of the secondary timing chain tensioners. Do not reuse the secondary timing chain tensioners if removed, or damage to the engine may occur.

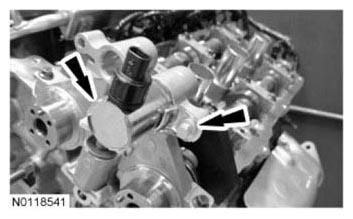

  26. NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoid.
    NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

    Remove the LH exhaust VCT oil control solenoid.

    G07410389

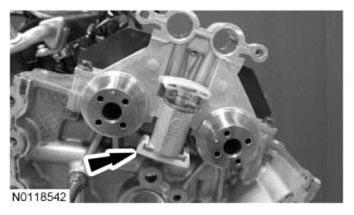

  27. Remove the LH secondary timing chain tensioner shoe.
    G07410390

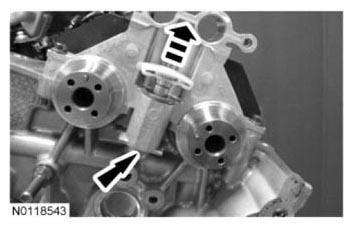

  28. Remove the LH secondary timing chain tensioner by pushing up from the bottom and remove.
    G07410391
  29. NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoid.
    NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

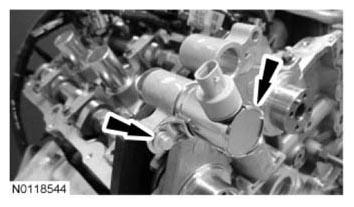

    Remove the RH exhaust VCT oil control solenoid.

    G07410392

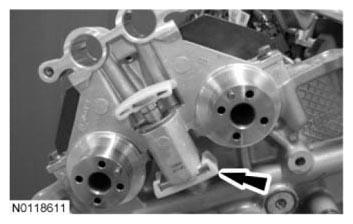

  30. Remove the RH secondary timing chain tensioner shoe.
    G07410393

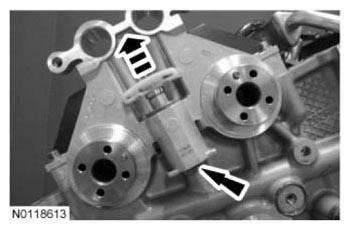

  31. Remove the RH secondary timing chain tensioner by pushing up from the bottom and remove.
    G07410394
