Lower Intake Manifold (View 3 of 3): Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

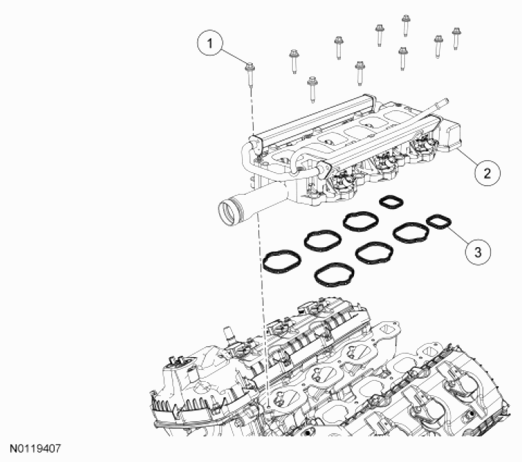

Fig 1: Exploded View Of Lower Intake Manifold
G07410296Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W503279 Lower intake manifold bolt (10 required)
2 9424 Lower intake manifold
3 9439 Lower intake manifold gasket (8 required)
