Front Cover Radial Seal: Installation

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

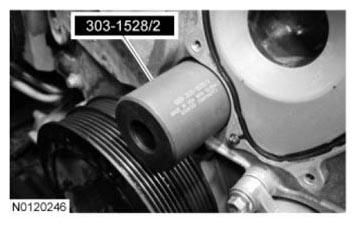

  1. Using the Water Tube Seal Installer, install the front cover radial seal.
    • Position the front cover radial seal on the Water Tube Seal Installer.
    • Position the Water Tube Seal Installer into the engine front cover.
    • Using a brass hammer, tap the Water Tube Seal Installer until the front cover radial seal bottoms out.
      G07410361
  2. Inspect the Front cover radial seal for proper installation or damage.
  3. Install the coolant pump. For additional information, refer to ENGINE COOLING .
  4. Install the thermostat housing. For additional information, refer to ENGINE COOLING .
  5. Install the accessory drive and A/C compressor belt. For additional information, refer to ACCESSORY DRIVE .
