Flexplate or Flywheel and Crankshaft Rear Seal - Exploded View: Flexplate

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

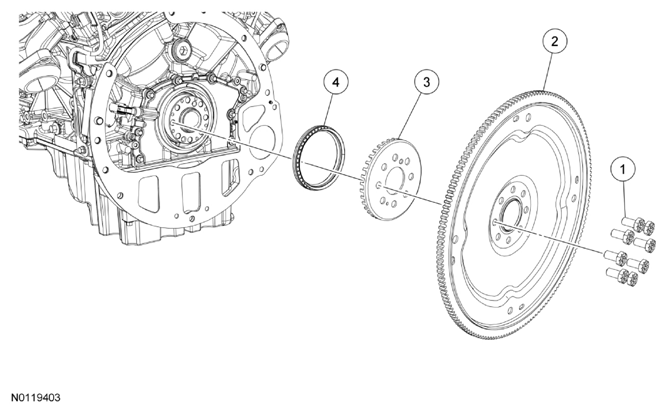

Fig 1: Exploded View Of Flexplate Or Flywheel And Crankshaft Rear Seal

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6379	Flexplate bolt (8 required)
2	6375	Flexplate
3	12A227	Crankshaft sensor ring
4	6701	Crankshaft rear seal
