Crankshaft Front Seal: Installation

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Apply clean engine oil to the crankshaft front seal bore in the engine front cover.

    Using the Front Crankshaft Seal Installer and Crankshaft Vibration Damper Installer, install a new crankshaft front seal.

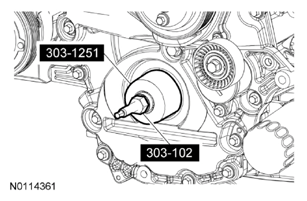

    Fig 1: Installing Crankshaft Front Seal Using Front Crankshaft Seal Installer And Crankshaft Vibration Damper Installer
    G08640047Courtesy of FORD MOTOR CO.
  2. Install the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY .
