Cylinder Head: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Compressor, Valve Spring 303-300 (T87C-6565-A) |
|
| Compressor, Valve Spring 303-350 (T89P-6565-A) |
|
| Compressor, Valve Spring 303-1249 |
|
| Installer, Valve Stem Oil Seal 303-470 (T94P-6510-CH) |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada) |
WSS-M2C945-A |
NOTE:

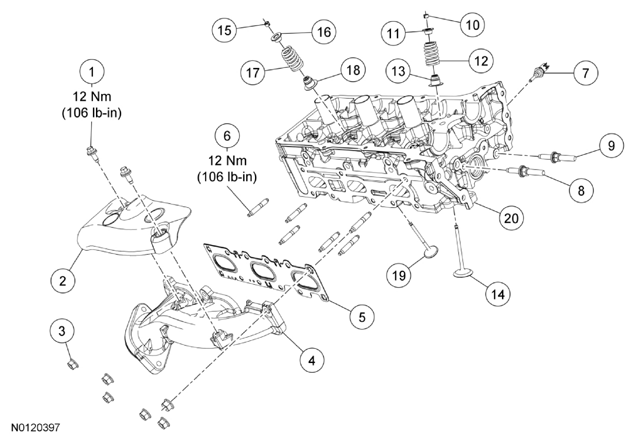

RH cylinder head shown in illustration, LH cylinder head similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W714133 | RH exhaust manifold heat shield bolt (2 required) |
| 2 | 9A462 | RH exhaust manifold heat shield |
| 3 | W701706 | RH exhaust manifold nut (6 required) |
| 4 | 9430 | RH exhaust manifold |
| 5 | 9448 | RH exhaust manifold gasket |
| 6 | W712244 | RH exhaust manifold stud (6 required) |
| 7 | 6G004 | Cylinder Head Temperature (CHT) sensor |
| 8 | W714090 | Timing chain tensioner arm pin |
| 9 | W714090 | Timing chain guide pin |
| 10 | 6518 | Intake valve spring retainer key (12 required) |
| 11 | 6514 | Intake valve spring retainer (6 required) |
| 12 | 6513 | Intake valve spring (6 required) |
| 13 | 6571 | Intake valve stem seal (6 required) |
| 14 | 6505 | Intake valve (6 required) |
| 15 | 6518 | Exhaust valve spring retainer key (12 required) |
| 16 | 6514 | Exhaust valve spring retainer (6 required) |
| 17 | 6513 | Exhaust valve spring (6 required) |
| 18 | 6571 | Exhaust valve stem seal (6 required) |
| 19 | 6507 | Exhaust valve (6 required) |
| 20 | 6049 | RH cylinder head |
