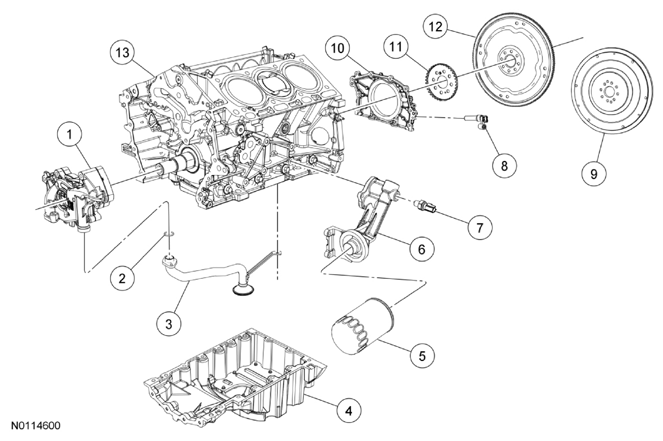

Lower Engine Block (View 1)
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6600 | Oil pump |
| 2 | 6625 | Oil pump screen and pickup tube O-ring seal |
| 3 | 6622 | Oil pump screen and pickup tube |
| 4 | 6675 | Oil pan |
| 5 | 6731 | Engine oil filter |
| 6 | 6881 | Oil filter adapter |
| 7 | 9278 | Engine Oil Pressure (EOP) switch |
| 8 | 6C315 | Crankshaft Position (CKP) sensor |
| 9 | 6477 | Flywheel |
| 10 | 6K301 | Crankshaft rear seal retainer |
| 11 | 12A227 | Crankshaft sensor ring |
| 12 | 6375 | Flexplate |
| 13 | 6010 | Cylinder block |
