Clutch Disc and Pressure Plate - 5.0L: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

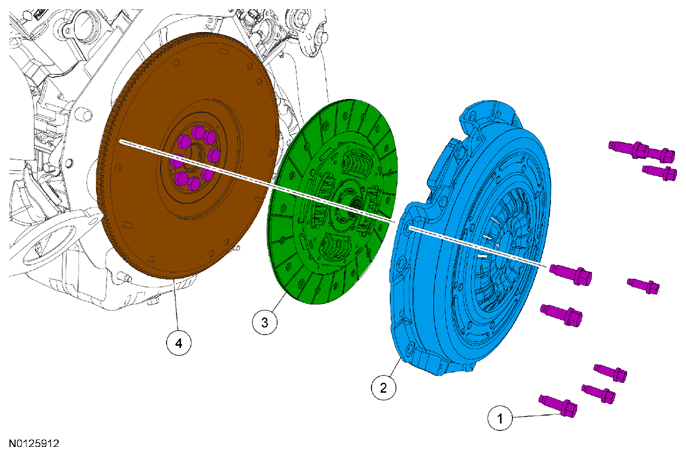

G07990634
Item Part Number Description
1 W715869 Clutch pressure plate bolt (9 required)
2 7563 Pressure plate
3 7550 Clutch disc
4 6375 Flywheel
