Clutch Master Cylinder: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |

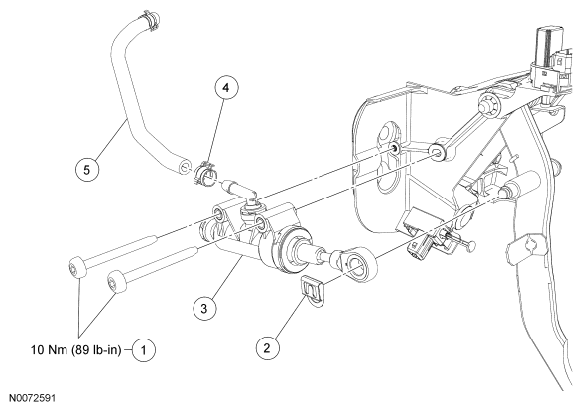

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Clutch master cylinder bolts (2 required) |
| 2 | - | Retaining clip |
| 3 | 7A543 | Clutch master cylinder |
| 4 | - | Hose clamp |
| 5 | - | Reservoir hose |
