RH Ignition Coil-on-Plugs and Spark Plugs
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

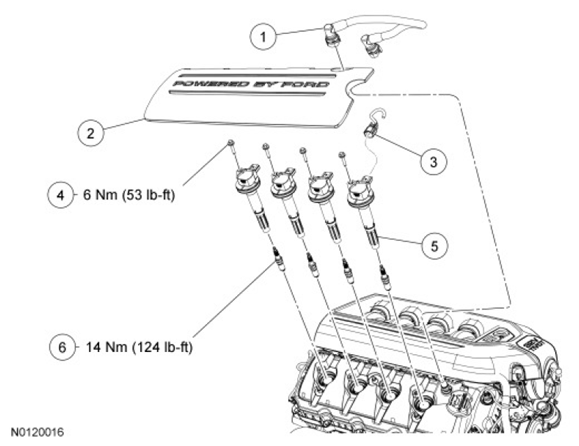

5.0L (4V) shown in illustration, Boss 302 similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6A664 | PCV tube |
| 2 | 6P067 | Ignition coil-on-plug cover |
| 3 | - | Ignition coil-on-plug electrical connector (part of 12B637) (4 required) |
| 4 | W714507 | Ignition coil-on-plug bolt (4 required) |
| 5 | 12029 | Ignition coil-on-plug (4 required) |
| 6 | 12405 | Spark plug (4 required) |
- Refer to the procedures and/or exploded views in this service information for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
