In-Ground Axle Lift Hoist Front Lifting Points - Four-Wheel Drive (4WD)

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

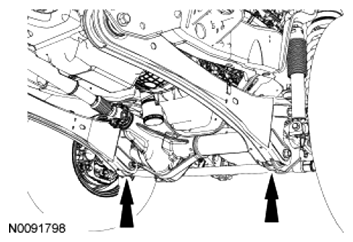

Fig 1: Locating In-Ground Axle Lift Hoist Front Lifting Points - Four-Wheel Drive (4WD)
G06776291Courtesy of FORD MOTOR CO.
