Wiper Pivot Arm: Installation

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a wire brush, clean the wiper pivot arm shaft.

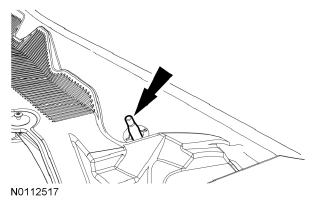

    Fig 1: Locating Wiper Pivot Arms
    G07429566Courtesy of FORD MOTOR CO.
  2. Cycle and park the windshield wipers.
  3. NOTE: New wiper pivot arms need to be installed as an assembly.

    Install the 2 wiper pivot arms to the specified distance.

    Fig 2: Identifying Wiper Pivot Arm Dimensions
    G06393221Courtesy of FORD MOTOR CO.
  4. Install the 2 wiper pivot arm nuts.
    • Tighten to 28 Nm (21 lb-ft).
  5. Install the 2 wiper pivot arm nut covers.
